Product Summary

The U.FL-R-SMT 10 is an ultra small SMT coaxial connector. It is used in Mobile phones, Wireless LAN, Mini-PCI, Bluetooth, PDA, GPS, electronic measuring instruments, etc.

Parametrics

U.FL-R-SMT 10 specifications: (1)Nominal characteristic impedance: 50 ohms; (2)Voltage rating: 60 V AC (rms); (3)Frequency range: DC to 6 GHz; (4)Operating temperature range: -40℃ to +90℃; (5)Operating humidity: 90% max.

Features

U.FL-R-SMT 10 features: (1)Low Profile: 1.9mm or 2.4mm Nom. Mated Height; (2)Extremely Small Occupied Mounting Area; (3)Light Weight; (4)Applicable Up to 6 GHz Frequency; (5)Board placement with automatic equipment; (6)Use of Ultra-fine Teflon Cable; (7)Simple Removal of Connector; (8)User Friendly Mating Operation.

Diagrams

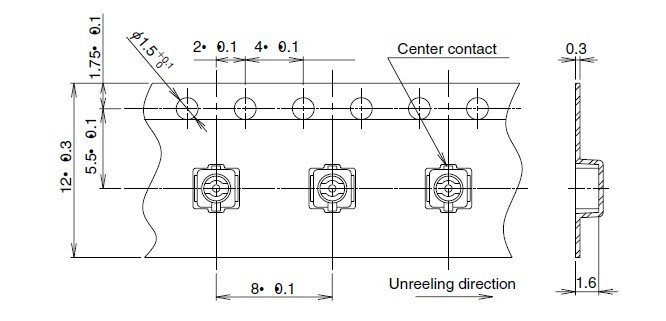

U.FL-R-SMT 10 dimension

U.FL
U.FL
Other

Data Sheet
Negotiable
U.FL.2LP-068N2T-A-(200)
U.FL.2LP-068N2T-A-(200)
Hirose Connector
RF Cable Assemblies DOUBLE END COAX CBL BLK 1.13MM DIAMETER
Data Sheet
0-100: $2.62
100-200: $2.18
200-500: $2.07
