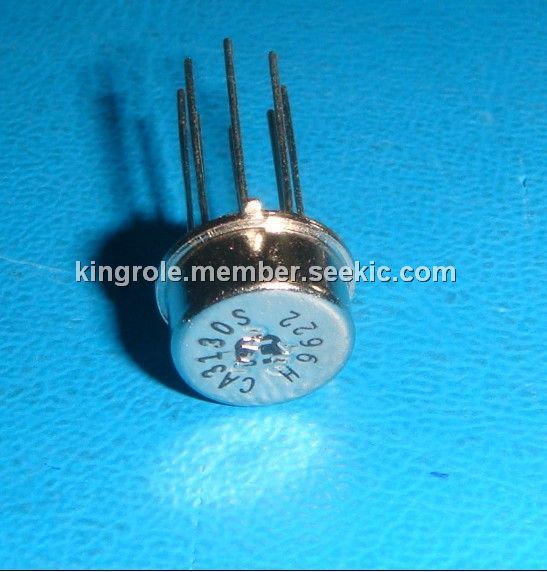

Product Summary

The CA3130S is a 15MHz, BiMOS Operational Amplifier with MOSFET Input/CMOS Output. The CA3130S combines the advantage of both CMOS and bipolar transistors. The CA3130S is used in the input circuit to provide very-high-input impedance, very-low-input current, and exceptional speed performance. The use of PMOS transistors in the input stage results in common-mode input-voltage capability down to 0.5V below the negative-supply terminal, an important attribute in single-supply applications. The applications of the CA3130S include Ground-Referenced Single Supply Amplifiers, Fast Sample-Hold Amplifiers, Long-Duration Timers/Monostables, High-Input-Impedance Comparators (Ideal Interface with Digital CMOS) and High-Input-Impedance Wideband Amplifiers.

Parametrics

CA3130S absolute maximum ratings: (1)DC Supply Voltage (Between V+ And V- Terminals): 16V; (2)Differential Input Voltage: 8V; (3)DC Input Voltage: (V+ +8V) to (V- -0.5V); (4)Input-Terminal Current: 1mA; (5)Output Short-Circuit Duration: Indefinite; (6)Operating Conditions Temperature Range: -50 to 125℃.

Features

CA3130S features: (1)MOSFET Input Stage Provides: Very High ZI = 1.5 TΩ(1.5 x 1012Ω (Typ); Very Low II: 5pA (Typ) at 15V Operation; = 2pA (Typ) at 5V Operation; (2)Ideal for Single-Supply Applications; (3)Common-Mode Input-Voltage Range Includes Negative Supply Rail; Input Terminals can be Swung 0.5V Below Negative Supply Rail; (4)CMOS Output Stage Permits Signal Swing to Either (or both) Supply Rails; (5)Pb-Free Plus Anneal Available (RoHS Compliant).

Diagrams

CA3130S Schematic Diagram
