Product Summary

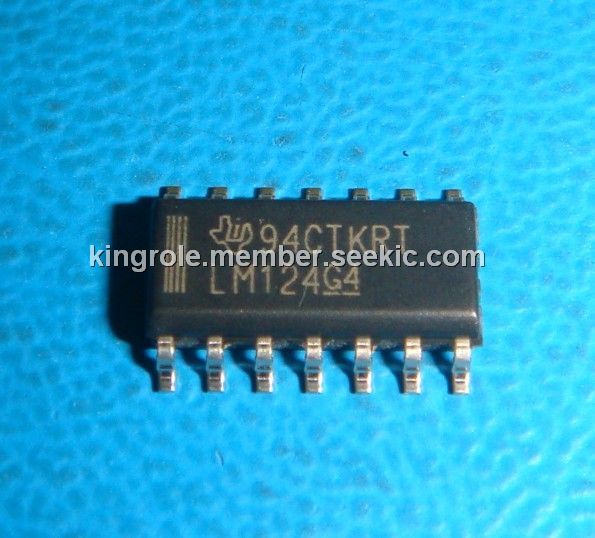

The LM124N is a Low power quad operational amplifier. The LM124N consists of four independent, high gain, internally frequency compensated operational amplifiers. The LM124N operates from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
Parametrics
LM124N absolute maximum ratings: (1)VCC, Supply voltage: ±16 or 32 V; (2)Vin, Input voltage: -0.3 to 32 V; (3)Vid Differential input voltage: 32 V; (4)Output short-circuit duration: Infinite; (5)Iin, Input current: Vin driven negative: 5 mA in DC or 50 mA in AC (duty cycle = 10%, T=1s); (6)Toper, Operating free-air temperature range: -40 to +105℃; (7)Tstg, Storage temperature range: -65 to +150℃; (8)Tj, Maximum junction temperature: 150℃; (9)Rthja, Thermal resistance junction to ambient: 100℃/W; (10)Rthjc, Thermal resistance junction to case: 31℃/W; (11)ESD HBM: human body model: 250V; MM: machine model: 150 V; CDM: charged device model: 1500V.
Features
LM124N features: (1)Wide gain bandwidth: 1.3 MHz; (2)Input common-mode voltage range includes ground; (3)Large voltage gain: 100 dB; (4)Very low supply current per amplifier: 375 μA; (5)Low input bias current: 20 nA; (6)Low input offset voltage: 5 mV max.; (7)Low input offset current: 2 nA; (8)Wide power supply range: Single supply: +3 V to +30 V; (9)Dual supplies: ±1.5 V to ±15 V.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LM124N |
STMicroelectronics |
Operational Amplifiers - Op Amps Quad 1.3 MHz 100dB 375 uA 20 na 5mV |
Data Sheet |
|
|
|||||||||||||
