Product Summary

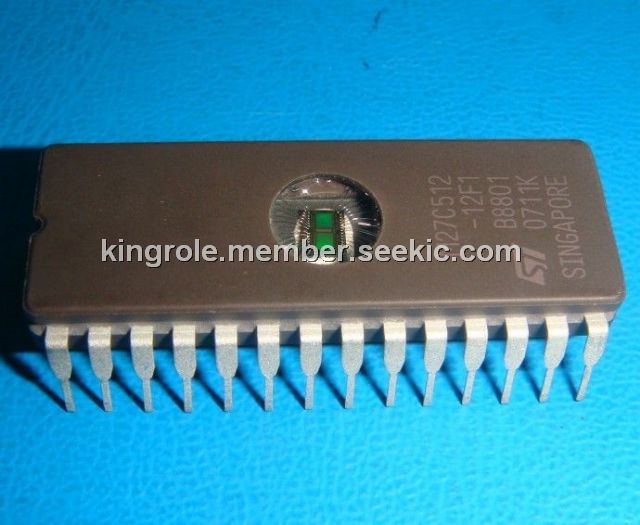

The M27C512-12F1 is a 512 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 65536 by 8 bits. For applications where the content is programmed only one time and erasure is not required, the M27C512-12F1 is offered in PDIP28, PLCC32 and TSOP28 (8 x 13.4 mm) packages. In addition to the standard versions, the packages are also available in Lead-free versions, in compliance with JEDEC Std J-STD-020B, the ST ECOPACK 7191395 Specification, and the RoHS(Restriction of Hazardous Substances) directive.
Parametrics
The M27C512-12F1 absolute maximum ratings: (1)Ambient Operating Temperature: –40 to 125℃; (2)Temperature Under Bias: -50 to 120℃; (3)Storage Temperature: –65 to 150℃; (4)Input or Output Voltage (except A9): –2 to 7 V; (5)Supply Voltage: –2 to 7 V; (6)A9 Voltage: –2 to 13.5 V; (7)Program Supply Voltage: –2 to 14 V.
Features
M27C512-12F1 features: (1) 5V ± 10% supply voltage in read operation; (2) ACCESS TIME: 45ns; (3) LOW POWER CMOS CONSUMPTION: Active Current 30mA; Standby Current 100µA; (4) PROGRAMMING VOLTAGE: 12.75V ± 0.25V; (5)PROGRAMMING TIMES of AROUND 6sec. (6) ELECTRONIC SIGNATURE: Manufacturer Code: 20h; Device Code: 3Dh (7)PACKAGES, Lead-Free Versions.

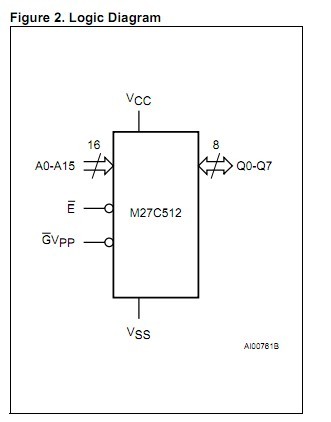

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C512-12F1 |
STMicroelectronics |
EPROM 512K (64Kx8) 120ns |
Data Sheet |
Negotiable |
|
||||
