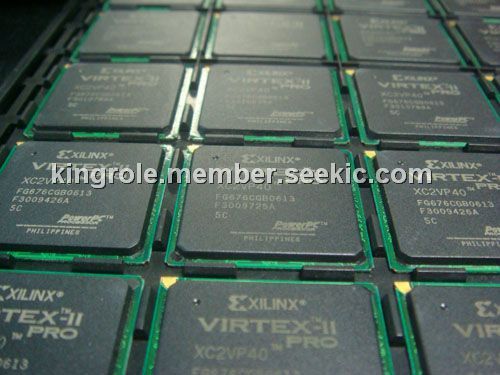

XC2VP40-FG676

Product Summary

The XC2VP40-FG676 is one member of the Virtex-II Pro and Virtex-II Pro X Platform FPGAs. These family contain platform FPGAs for designs that are based on IP cores and customized modules. Also the XC2VP40-FG676 is user-programmable gate arrays with various configurable elements and embed-ded blocks optimized for high-density and high-performance system designs.

Parametrics

Absolute maximum ratings: (1)VCCINT, Internal supply voltage relative to GND: –0.5 to 1.6 V; (2)VCCAUX, Auxiliary supply voltage relative to GND: –0.5 to 3.0 V; (3)VCCO, Output drivers supply voltage relative to GND: –0.5 to 3.75 V; (4)VBATT, Key memory battery backup supply: –0.5 to 4.05 V; (5)VREF, Input reference voltage: –0.3 to 3.75 V; (6)VIN: 3.3V I/O input voltage relative to GND (user and dedicated I/Os): –0.3 to 4.05(3) V; 2.5V or below I/O input voltage relative to GND (user and dedicated I/Os): –0.5 to VCCO + 0.5 V; (7)VTS: Voltage applied to 3-state 3.3V output (user and dedicated I/Os:) –0.3 to 4.05(3) V; Voltage applied to 3-state 2.5V or below output (user and dedicated I/Os): –0.5 to VCCO + 0.5 V; (8)TSTG Storage temperature (ambient): –65 to +150 °C; (9)TSOL, Maximum soldering temperature: All regular FG/FF flip-chip packages: +220 °C; Pb-free FGG256 wire-bond package: N/A, +260 °C; Pb-free FGG456 and FGG676 wire-bond packages: N/A, +250 °C; (10)TJ, Maximum junction temperature: +125 °C.

Features

Features:(1)100 Gb/s duplex data rate (20 channels);(2)monolithic clock synthesis and clock recovery (CDR);(3)fibre channel, 10G fibre channel, gigabit ethernet, 10 Gb attachment unit interface (XAUI), and infiniband-compliant transceivers;(4)2.5V transceiver supply voltage;(5)per-channel internal loopback modes;(6)five levels of output differential voltage;(7)four levels of selectable pre-emphasis;(8)rate matching via insertion/deletion characters;(9)channel bonding support (from 2 to 20 channels);(10)programmable comma detection;(11)8B /10B encoder and decoder (optional).

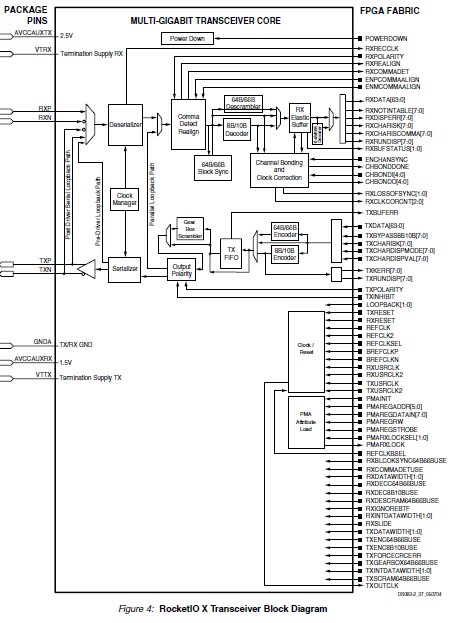

Diagrams
