Product Summary

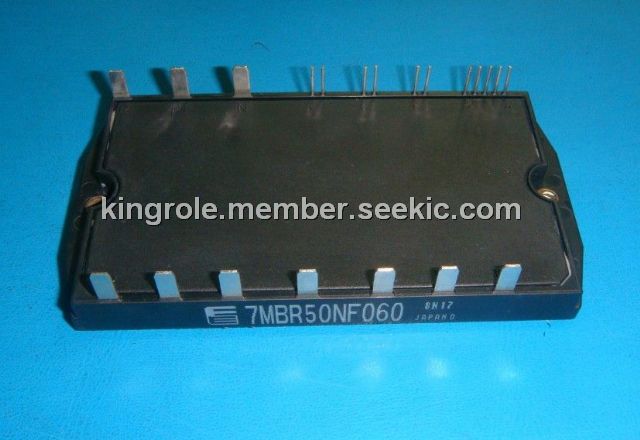

The 7MBR50NF060 is a IGBT MODULE. It is widely used in inverter for Motoe Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply and so on.

Parametrics

Absolute maximum ratings: (1)inverter:Collector-Emitter voltage, VGES: 600V; Gate-Emitter voltage, VGES: ±20V; Collector current: IC: 50A DC; ICP:100A at 1ms; -IC: 50A at DC; Collector power disspation 1 device, PC: 200w; (2)braker: Collector-Emitter voltage, VGES: 600V; Gate-Emitter voltage, VGES: ±20V; Collector current: IC: 50A DC; ICP:100A at 1ms; Collector power disspation 1 device, PC: 200w; Repetitive peak reverse voltage, VRRM: 600V; Average forward current, IF(AV):1A; Surge current, IFSM: 50A at 10ms; (3)converter: Repetitive peak reverse voltage, VRRM: 800V; Average output current, Io: 50A at 50HZ/60HZ sine wave; Non-Repetitive peak reverse voltage, vrsm: 900v; Surge current(Non-Repetitive), IFSM: 350A at Tj=150℃,10ms; I2t (Non-Repetitive): 648 A2S at Tj=150℃,10ms; (4)Operating junction temperature, Tj: 150℃; (5)Storage temperature, Tstg: -40 to +125℃; (6)Isolation voltage,Viso: AC 2500 v at AC: 1min; (7)Mounting screw torque: 1.7N.m.

Features

Features: (1)High Speed Switching; (2)Voltage Drive; (3)Low Inductance Module Structure; (4)Converter Diode Bridge Dynamic Brake Circuit.

Diagrams
