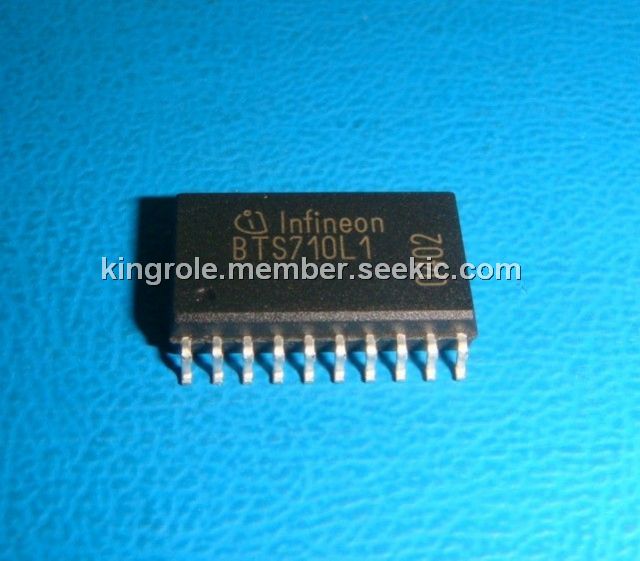

Product Summary

The BTS710L1 is a Smart Four Channel Highside Power Switch. The applications of the BTS710L1 include μC compatible power switch with diagnostic feedback for 12 V DC grounded loads, Most suitable for resistive and lamp loads and Replaces electromechanical relays and discrete circuits. N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOSa technology. The BTS710L1 is fully protected by embedded protection functions.

Parametrics

BTS710L1 absolute maximum ratings: (1)Load current (Short-circuit current), IL: self-limited; (2)Load dump protection, VLoad dump: 60V; (3)Operating temperature range, Tj: -40 to 150℃; (4)Storage temperature range, Tstg: -55 to +150℃; (5)Power dissipation (DC),Ptot: 3.6W at Ta = 25℃; 1.9W at Ta = 85℃; (6)Electrostatic discharge capability (ESD), (Human Body Model), VESD: 1.0 kV; (7)Input voltage (DC), VIN: -10 to +16 V; (8)Current through input pin (DC), Iin: ±2.0mA; (9)Current through status pin (DC), IST: ±5.0mA; (10)Thermal resistance, junction - soldering point each channel: Rthjs: 16 K/W; junction - ambient one channel active: Rthja: 44K/W; all channels active: 35K/W.

Features

BTS710L1 features: (1)Overload protection; (2)Current limitation; (3)Short-circuit protection; (4)Thermal shutdown; (5)Overvoltage protection (including load dump); (6)Reverse battery protection1); (7)Undervoltage and overvoltage shutdown with auto-restart and hysteresis; (8)Open drain diagnostic output; (9)Open load detection in ON-state; (10)CMOS compatible input; (11)Loss of ground and loss of Vbb protection; (12)Electrostatic discharge (ESD) protection.

Diagrams

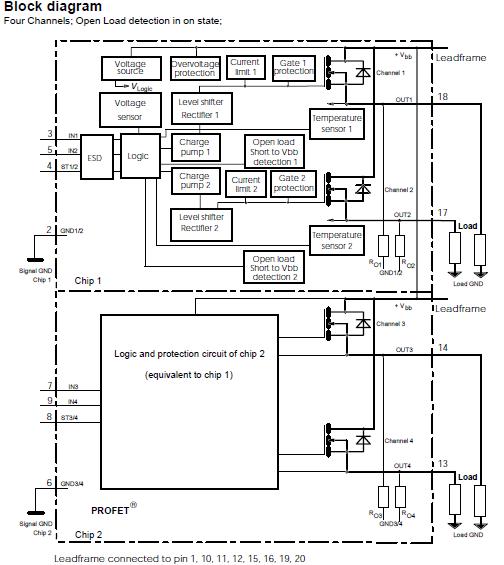

BTS710L1 block diagram
