Product Summary

The MC1723G is a voltage regulator. The MC1723G is a positive or negative voltage regulator designed to deliver load current to 150mAdc. Output current capability can be increased to several amperes through use of one or more external pass transistors. The MC1723G is specified for operation over the commercial temperature range 0 to 70℃.

Parametrics

MC1723G maximum ratings: (1)Military/High-Rel: NLoad Current Max.: 150mMin; (2)Adjustable Output Voltage: 2.0; (3)Max. Adjustable Output Voltage: 37Output Voltage Nominal: 37V; (4)Drop-Out Volt Max.: 3.0V; (5)P(D) Max.: 1.0Nom. Supp: 40W; (6)Supply Voltage Maximum: 40V; (7)Minimum Operating Temp: -55℃; (8)Maximum Operating Temp: 125℃; (9)Package Style: TO-100; (10)Mounting Style: T# Pins: 10IB; (11)Description: 2.0V to 37V.

Features

MC1723G features: (1)Output voltage ajustable from 2 to 37V; (2)Output current to 150m Adc without exterminal pass transistors; (3)0.01% line and 0.03% load regulation; (4)Adjustable short-circuit protection.

Diagrams

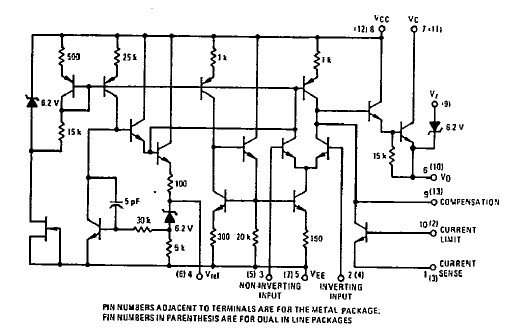

MC1723G block diagram
