Product Summary

The 74ACT02MTCX is a Quad 2-Input NOR Gate. It contains four, 2-input NOR gates.

Parametrics

74ACT02MTCX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to 7.0V; (2)DC Input Diode Current (IIK): -20mA when VI=-0.5V; +20mA when VI= VCC+0.5V; (3)DC Input Voltage (VI): -0.5V to VCC+0.5V; (4)DC Output Diode Current (IOK): -20mA when VO=-0.5V; +20mA when VO=VCC+0.5V; (5)DC Output Voltage (VO): -0.5V to VCC+0.5V; (6)DC Output Source or Sink Current (IO): ±50 mA; (7)DC VCC or Ground Current per Output Pin (ICC or IGND): ±50 mA; (8)Storage Temperature (TSTG): -65 to 50℃; (9)Junction Temperature (TJ): 140℃.

Features

74ACT02MTCX features: (1)ICC reduced by 50% on 74AC02 only; (2)Outputs source/sink 24 mA; (3)ACT02 has TTL-compatible inputs.

Diagrams

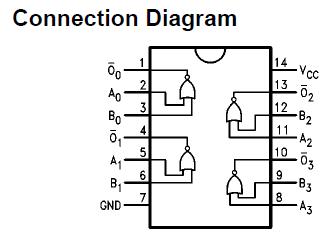

74ACT02MTCX Connection Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

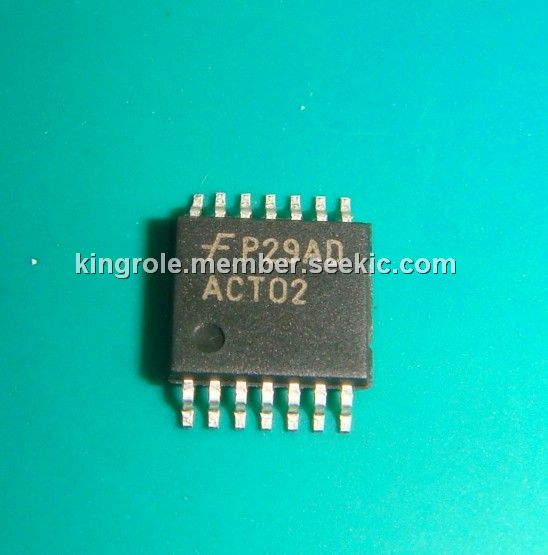

74ACT02MTCX
74ACT02MTCX


IC GATE NOR QUAD 2INPUT 14TSSOP

Data Sheet

Negotiable
