Product Summary

The UDA1341TS/N1 is a single-chip stereo Analog-to-Digital Converter (ADC) and Digital-to-Analog Converter (DAC) with signal processing features employing bitstream conversion techniques. Its fully integrated analog front end, including Programmable Gain Amplifier (PGA) and a digital Automatic Gain Control (AGC). The UDA1341TS/N1 supports the I2S-bus data format with word lengths of up to 20 bits, the MSB-justified data format with word lengths of up to 20 bits, the LSB-justified serial data format with word lengths of 16, 18 and 20 bits and three combinations of MSB data output combined with LSB 16, 18 and 20 bits data input. The UDA1341TS/N1 has DSP features in playback mode like de-emphasis, volume, bass boost, treble and soft mute, which can be controlled via the L3-interface with a microcontroller.

Parametrics

Absolute maximum ratings: (1)VDD, supply voltage: . 5.0 V max at All VDD and VSS connections must be made to the same power supply; (2)Txtal(max), maximum crystal temperature: 150 ℃ max; (3)Tstg, storage temperature: -65 to +125 ℃; (4)Tamb, operating ambient temperature: -20 to +85 ℃; (5)Ves, electrostatic handling: -2000 to +2000 V at Equivalent to discharging a 100 pF capacitor via a 1.5 kΩ series resistor; -250 to +250 V at Equivalent to discharging a 200 pF capacitor via a 2.5 μH series inductor; (6)Ilu(prot), latch-up protection current at Tamb = 125 ℃; VDD = 3.6 V: 200 mA max; (7)Isc(DAC), DAC short-circuit current at Tamb = 0 ℃; VDD = 3.0 V: output short-circuited to VSSA(DAC): 482 mA max; output short-circuited to VDDA(DAC): 346 mA max.

Features

Features: (1)Low power consumption; (2)3.0 V power supply; (3)256fs, 384fs or 512fs system clock frequencies (fsys); (4)Small package size (SSOP28); (5)Partially pin compatible with UDA1340M and UDA1344TS; (6)Fully integrated analog front end including digital AGC; (7)ADC plus integrated high-pass filter to cancel DC offset; (8)ADC supports 2 V (RMS value) input signals; (9)Overload detector for easy record level control; (10)Separate power control for ADC and DAC; (11)No analog post filter required for DAC; (12)Easy application; (13)Functions controllable via L3-interface.

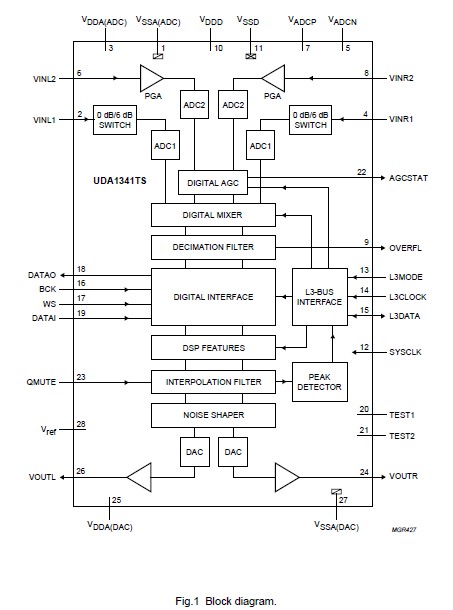

Diagrams

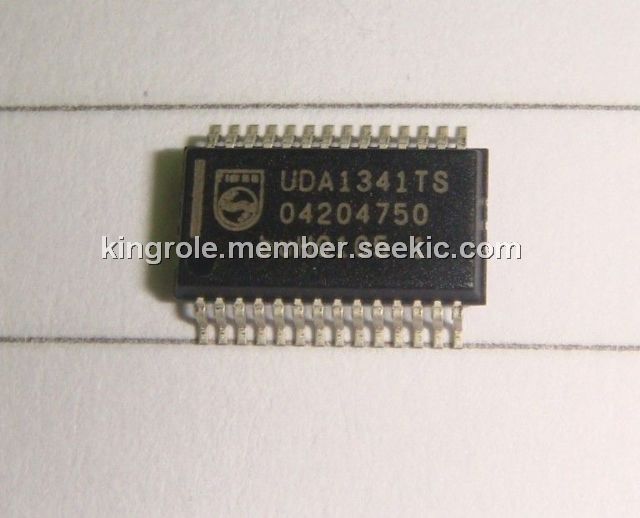

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
UDA1341TS/N1,512
UDA1341TS/N1,512

NXP Semiconductors

Audio CODECs AUDIO CODEC MINIDISC

Data Sheet

0-360: $2.69
360-500: $2.42
500-1000: $2.04
1000-2000: $1.94
UDA1341TS/N1,518
UDA1341TS/N1,518

NXP Semiconductors

Audio CODECs MINIDISC AUDIO CODEC

Data Sheet

0-1: $3.01
1-25: $2.41
25-100: $1.87
100-250: $1.85
