Product Summary

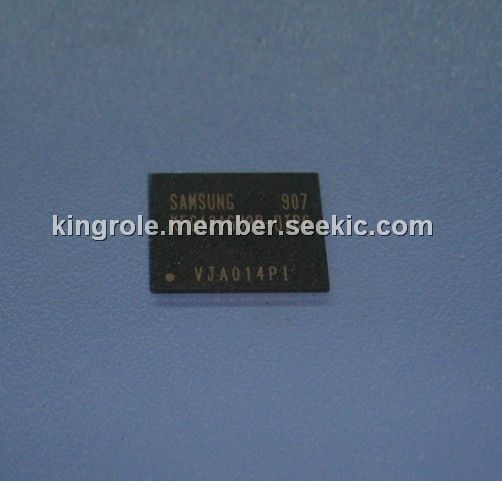

The KFG1216U2B-DIB6 OneNAND is a monolithic integrated circuit with a NAND Flash array using a NOR Flash interface. This device includes control logic, a NAND Flash array, and 5KB of internal BufferRAM. It operates up to a maximum host-driven clock frequency of 66MHz for synchronous reads at Vcc(or Vccq. Refer to chapter 4.2) with minimum 6-clock latency. The OneNAND is an advanced generation, high-performance NAND-based Flash memory. It integrates on-chip a single-level-cell (SLC) NAND Flash Array memory with two independent data buffers, boot RAM buffer, a page buffer for the Flash array, and a one-time-programmable block.
Parametrics
Absolute maximum ratings: (1)Voltage on any pin relative to VSS, Vcc (for 3.3V): -0.5 to + 4.6 V; All Pins, VIN (for 3.3V): -0.5 to + 4.6 v; (2)Temperature Under Bias, Industrial Tbias: -40 to +125 ℃; (3)Storage Temperature, Tstg: -65 to +150 ℃; (4)Short Circuit Output Current, IOS: 5 mA; (5)Recommended Operating Temperature, TA (Extended Temp.): -30 to +85℃; TA (Industrial Temp.): -40 to +85℃.
Features
Features: (1)Voltage detector generating internal reset signal from Vcc; (2)Hardware reset input (RP); (3)Data Protection Modes; (4)User-controlled One Time Programmable(OTP) area; (5)Internal 2bit EDC / 1bit ECC; (6)Internal Bootloader supports Booting Solution in system; (7)Handshaking Feature; (8)Detailed chip information; (9)512Mb products.
Diagrams
 |
