Product Summary

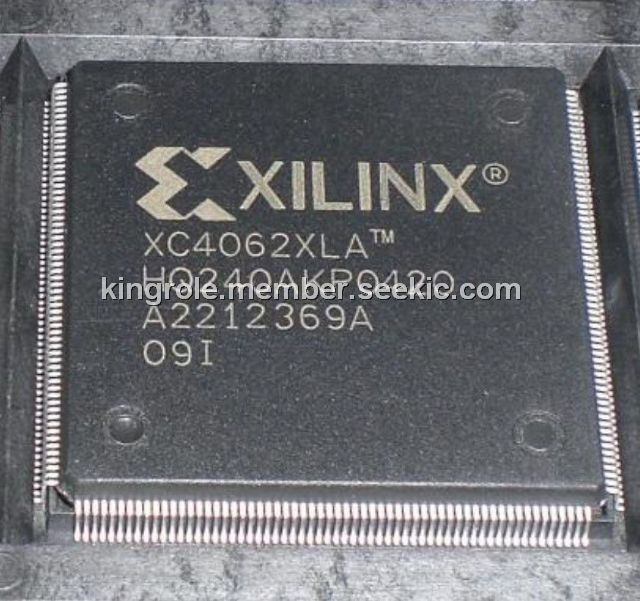

The XC4062XLA-09HQ240I is a Field Programmable Gate Array, which has the same features as XLA devices, incorporate additional interconnect resources and extend gate capacity to 500,000 system gates. This device requires a separate 2.5V power supply for internal logic but maintain 5V I/O compatibility via a separate 3.3V I/O power supply.
Parametrics
Electrical features: (1)XLA Devices Require 3.0 - 3.6 V (VCC); (2)XV Devices Require 2.3- 2.7 V (VCCINT) and 3.0 - 3.6 V (VCCIO); (3)5.0 V TTL compatible I/O; (4)3.3 V LVTTL, LVCMOS compliant I/O; (5)5.0 V and 3.0 V PCI Compliant I/O; (6)12 mA or 24 mA Current Sink Capability; (7)Safe under All Power-up Sequences; (8)XLA Consumes 40% Less Power than XL; (9)XV Consumes 65% Less Power than XL; (10)Optional Input Clamping to VCC (XLA) or VCCIO (XV).
Features
Features: (1)System-featured Field-Programmable Gate Arrays:Select-RAMTM memory: on-chip ultra-fast RAM with Synchronous write option and Dual-port RAM option; flexible function generators and abundant flip-flops; Dedicated high-speed carry logic; Internal 3-state bus capability; Eight global low-skew clock or signal distribution networks; (2)Flexible Array Architecture; (3)Low-power Segmented Routing Architecture; (4)Systems-oriented Features: IEEE 1149.1-compatible boundary scan; Individually programmable output slew rate; Programmable input pull-up or pull-down resistors; unlimited reprogrammability; (5)Read Back Capability: Program verification and internal node observability.
