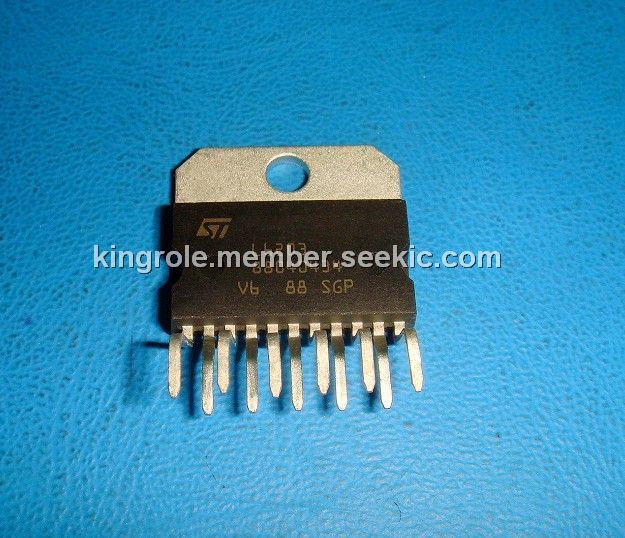

L6203

DMOS, full bridge driver, 48v

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.75~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.75~1.00

PartNumber:: L6203

Brand:: STMicroelectronics - ST | Pack: ZIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. winona's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-05

From Other Seller

Part Number:L6203
US $0.75 - 1.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

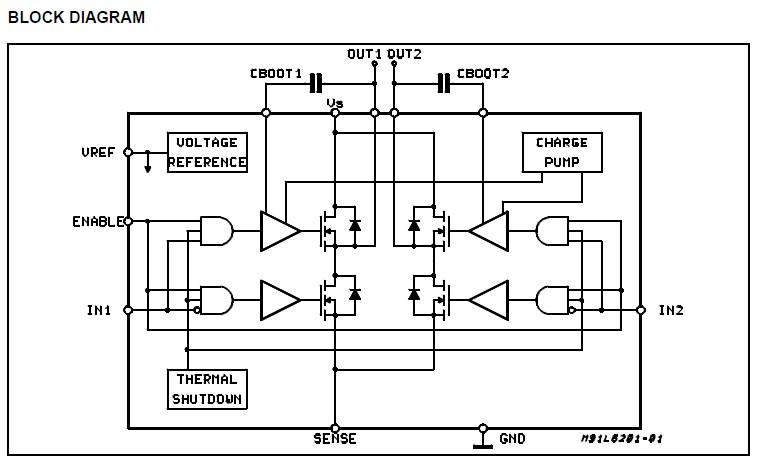

The L6203 is a full bridge driver for motor control applications realized in Multipower-BCD technology which combines isolated DMOS power transistors with CMOS and Bipolar circuits on the same chip. By using mixed technology it has been possible to optimize the logic circuitry and the power stage to achieve the best possible performance. The DMOS output transistors can operate at supply voltages up to 42V and efficiently at high switching speeds. All the logic inputs are TTL, CMOS and μC compatible. Each channel (half-bridge) of
the device is controlled by a separate logic input, while a common enable controls both channels. The I.C. is mounted in three different packages.

Parametrics

Absolute maximum ratings: (1)Vs, Power Supply: 52 V; (2)VOD, Differential Output Voltage (between Out1 and Out2): 60 V; (3)VIN, VEN, Input or Enable Voltage: – 0.3 to + 7 V; (4)Io, Pulsed Output Current: 5A; Non Repetitive (< 1 ms) : 10A; (5)Vsense, Sensing Voltage: – 1 to + 4 V; (6)Vb, Boostrap Peak Voltage: 60 V; (7)Ptot, Total Power Dissipation: 20W at Tcase = 90℃ ; 2.3w at Tamb = 70℃; (8)Tstg, Tj Storage and Junction Temperature: – 40 to + 150 ℃.

Features

Features: (1)supply voltage up to 48v; (2)5A max peak current (2a max. for l6201); (3)total rms current up to 4A; (4)rds (on) 0.3 Ω (typical value at 25℃); (5)cross conduction protection; (6)ttl compatible drive; (7)operating frequency up to 100 khz; (8)thermal shutdown; (9)internal logic supply; (11)high efficiency.
