Product Summary
The MAX4662CWE quad analog switch features low on-resistance of 2.5Ω max. On-resistance is matched between switches to 0.5Ω max and is flat (0.5Ω max) over the specified signal range. Each MAX4662CWE switch can handle Rail-to-Rail® analog signals. The MAX4662CWE is suitable for reed relay replacement, avionics, test Equipment ADC systems, communication systems and so on.
Parametrics
MAX4662CWE maximum ratings: (1)V+ to GND: -0.3V to +44V; (2)V- to GND: +0.3V to -44V; (3)V+ to V-: -0.3V to +44V; (4)VL to GND: (GND - 0.3V) to (V+ + 0.3V); (5)Continuous Current (COM_, NO_, NC_) : ±200mA; (6)Peak Current (COM_, NO_, NC_)(pulsed at 1ms, 10% duty cycle): ±300mA; (7)SSOP (derate 7.1mW/℃ above +70℃): 571mW ; (8)Wide SO (derate 9.52mW/℃ above +70℃): 762mW; (9)Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW; (10)Operating Temperature Ranges: 0℃ to +70℃; (11)Storage Temperature Range: -65℃ to +150℃.
Features
MAX4662CWE features: (1)Low On-Resistance (2.5Ω max); (2)Guaranteed RON Match Between Channels (0.5Ω max); (3)Guaranteed RON Flatness over Specified Signal Range (0.5Ω max); (4)Rail-to-Rail Signal Handling; (5)Guaranteed Break-Before-Make (MAX4663); (6)> 2kV ESD Protection per Method 3015.7; (7)+4.5V to +36V Single-Supply Operation; (8)±4.5V to ±20V Dual-Supply Operation; (9)TTL/CMOS-Compatible Control Inputs.

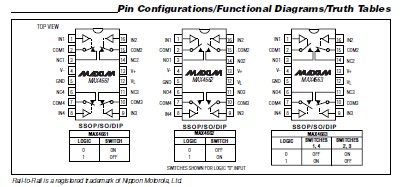

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX4662CWE-T |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||
|
MAX4662CWE+T |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||
|
MAX4662CWE+ |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||
|
MAX4662CWE |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||
