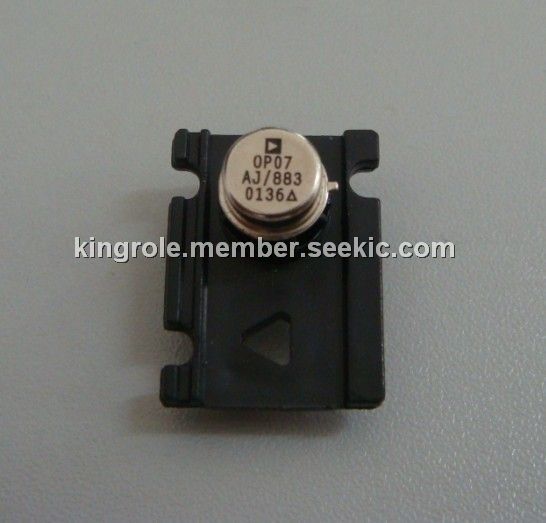

OP07AJ/883

operational amplifier, low input offset voltage , 10μV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.80~3.00

PartNumber:: OP07AJ/883

Brand:: Analog Devices - ADI | Pack: CAN | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. winona's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-05

From Other Seller

Part Number:OP07AJ/883
US $1.80 - 3.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The OP07AJ/883 belongs to OP07 family which is a precision operational amplifier with very low input offset voltage (10μV typ., 25μV max. for the OP07A), input offset drift of 0.2μV/℃ and low input bias current of 0.7nA. The excellent linearity and gain accuracy are maintained at high open-loop gains, over both time and temperature. The OP07 has become an industry standard and Maxims reliability and quality are added advantages. The wide input common mode range of ±14V combined with high CMRR of 110dB minimum (OP07A), plus high input impedance and high open-loop gain make these devices particularly useful for high-gain instrumentation applications.

Parametrics

Absolute maximum ratings: (1)total supply voltage (V+ to V-): ±22V; (2)internal power dissipation: 500mW; (3)TO-99(J)一berate at 7.1 mW/℃ above +80℃, hermetic dip(Z)一berate at 6.7mW/℃ above +75℃, plastic dip(P)一berate at 5.6mW/℃ above +36℃, small outline一berate at 5mW/℃ above +55℃; (4)differential input voltage: ±30V; (5)input voltage (Note 1: For supply voltages less than ±22V, the absolute maximum input voltage is equal to the supply voltage): ±22V; (6)storage temperature range: -65℃ to +150℃; (7)operating temperature range OP07AJ. OP07AZ. OP07J and OP07Z: -55℃ to +125℃, all other parts: 0℃ to +70℃; (8)lead temperature (soldering, 10 sec): +300℃; (9)duration of output short circuit: indefinite; (10)junction temperature (TJ): -65℃ to +160℃.

Features

Features: (1)ultra low offset voltage: 10μV; (2)ultra low offset voltage drift: 0.2μV/℃; (3)ultra stable vs. time: 0.2μV/Month; (4)ultra low noise: 0.35μVp-p; (5)wide supply voltage: ±3V to ±18V; (6)high common mode input: ±14V; (7)no external components required; (8)fits AD510, 725,108A/308A, 741 sockets.
