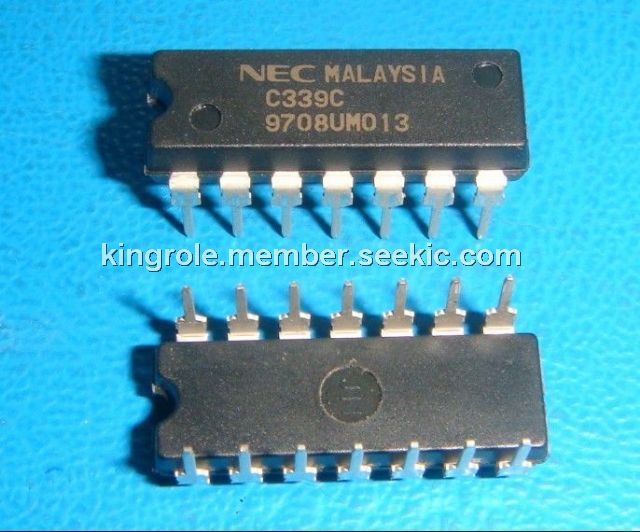

Product Summary

The C339C is a quad comparator which is designed to operate from a single power supply over a wide range of voltage. Operation from split power supplies, is also possible and the power supply current drain is very low. Further advantage, the input common-mode voltage of the C339C includes ground, even though operated from a single power supply voltage.

Parametrics

C339C absolute maximum ratings: (1)Voltage between V+ and V–, V+ –V–: –0.3 to +36 V; (2)Differential Input Voltage, VID: ±36 V; (3)Input Voltage, VI: V– –0.3 to V– +36 V; (4)Output Voltage, VO: V– –0.3 to V– +36 V; (5)Power Dissipation, PT: 570 mW; (6)Output Short Circuit Duration: Indefinite sec; (7)Operating Ambient Temperature, TA: –20 to +80℃; (8)Storage Temperature, Tstg: –55 to + 125℃.

Features

C339C features: (1)Common-mode input voltage range includes V-; (2) Wide supply voltage range: 2 V to 32 V (Single); ±1V to ±16 V (Split); (3)Low supply current; (4)Open collector output.

Diagrams

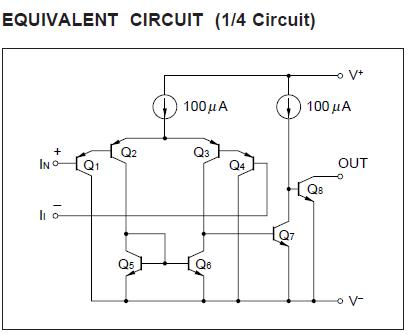

C339C equivalent circuit
