Product Summary

The LM20BIM7X is a precision analog output CMOS integrated-circuit temperature sensor that operates over -55℃ to +130℃ temperature range. The power supply operating range is +2.4 V to +5.5 V. The transfer function of LM20BIM7X is predominately linear, yet has a slight predictable parabolic curvature.

Parametrics

Absolute maximum ratings: (1)Supply Voltage: +6.5V to -0.2V; (2)Output Voltage: (V+ + 0.6 V) to -0.6 V; (3)Output Current: 10 mA; (4)Input Current at any pin: 5 mA; (5)Storage Temperature: -65℃ to +150℃; (6)Maximum Junction Temperature (TJMAX): +150℃; (7)ESD Susceptibility: Human Body Model 2500 V, Machine Model 250 V; (8)Lead Temperature SC-70 Package: Vapor Phase (60 seconds) +215℃, Infrared (15 seconds) +220℃.

Features

Features: (1)Rated for full -55℃ to +130℃ range; (2)Available in an SC70 and a micro SMD package; (3)Predictable curvature error; (4)Suitable for remote applications.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

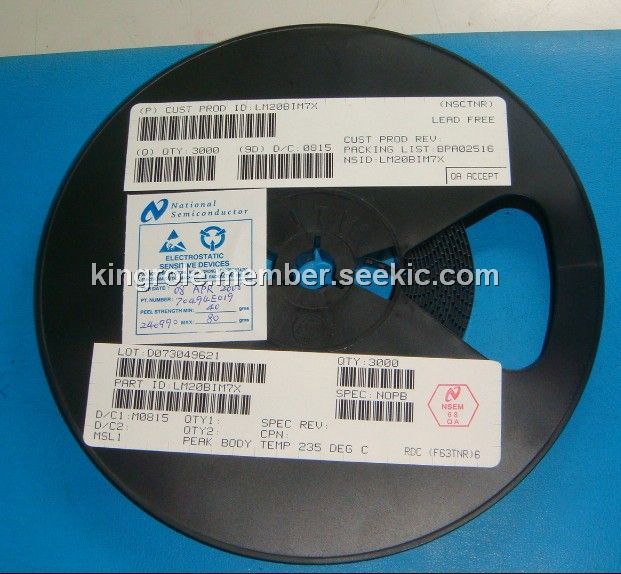

LM20BIM7X
LM20BIM7X
National Semiconductor (TI)
Board Mount Temperature Sensors
Data Sheet
0-3000: $0.27
3000-6000: $0.26
6000-12000: $0.25
LM20BIM7X/HALF
LM20BIM7X/HALF

IC TEMPERATURE SENSOR SC-70-5
Data Sheet
0-1: $0.71
1-10: $0.63
10-25: $0.57
25-100: $0.50
100-250: $0.44
250-500: $0.39
500-1000: $0.31
LM20BIM7X/NOPB
LM20BIM7X/NOPB
National Semiconductor (TI)
Board Mount Temperature Sensors 2.4V,10UA,MICRO SMD TEMP SENSOR
Data Sheet
0-1: $0.68
1-25: $0.54
25-100: $0.48
100-250: $0.42
