Product Summary

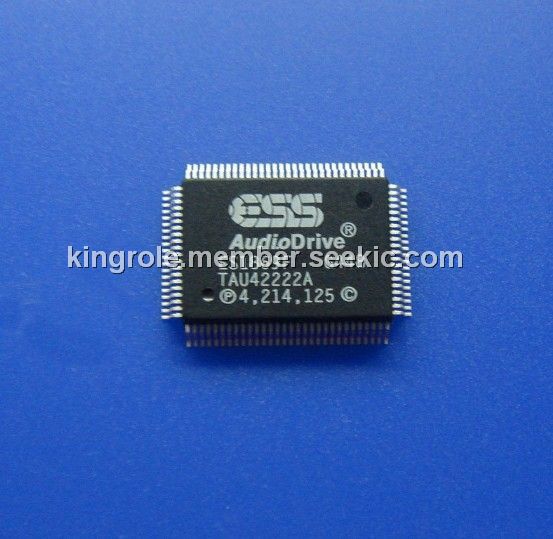

The ES1869F AudioDrive solution is a single, mixed-signal chip that adds 16-bit stereo sound and FM music synthesis to personal computers. It is compliant with the Microsoft PC 97 and PC 98 specifications and WHQL audio requirements. The ES1869F possesses an embedded microcontroller, an OPL3 superset ESFMTM music synthesizer, a 16-bit stereo wave ADC and DAC, 16-bit stereo music DAC, MPU-401 UART mode serial port, dual game port, full plug-and-play support, CD-ROM IDE interface, hardware master volume control, two serial port interfaces to external DSP and external wavetable music synthesizer, I2S zoom video interface, DMA control logic with FIFO, and ISA bus interface logic.
Features
Features: (1)Single, high-performance, mixed-signal, 16-bit stereo VLSI chip; (2)High-quality, OPL3 superset ESFM music synthesizer; (3)IDE CD-ROM interface; (4)High-performance DMA supports demand transfer and F-type; (5)Integrated Spatializer 3D VBX stereo audio effects technology provided by Desper Products, Inc.
Diagrams
 |
