Product Summary

The 74ACT00 is a Quad 2-Input NAND Gate. It contains four 2-input NAND gates.

Parametrics

74ACT00 absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7.0V; (2)DC Input Diode Current (IIK): -20mA when VI=-0.5V; 20 mA when VI=VCC + 0.5V; (3)DC Input Voltage (VI): -0.5V to VCC + 0.5V; (4)DC Output Diode Current (IOK): -20mA when VO=-0.5V; 20 mA when VO=VCC + 0.5V; (5)DC Output Voltage (VO): -0.5V to VCC + 0.5V; (6)DC Output Source or Sink Current (IO): ±50 mA; (7)DC VCC or Ground Current per Output Pin (ICC or IGND): ±50 mA; (8)Storage Temperature (TSTG): -65℃ to +150℃; (9)Junction Temperature (TJ): 140℃.

Features

74ACT00 features: (1)ICC reduced by 50%; (2)Outputs source/sink 24 mA; (3)ACT00 has TTL-compatible inputs.

Diagrams

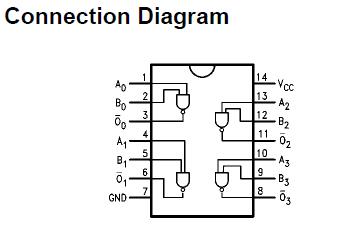

74ACT00 Connection Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

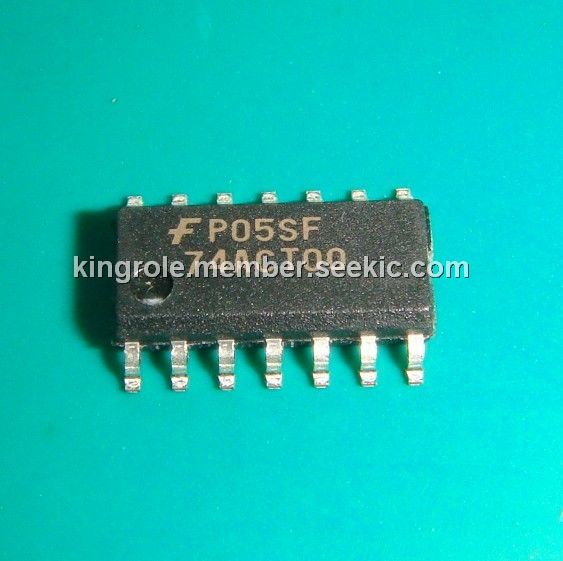

74ACT00
74ACT00

Other


Data Sheet

Negotiable
74ACT00MTC
74ACT00MTC

Fairchild Semiconductor

Gates (AND / NAND / OR / NOR) Qd 2-Input NAND Gate

Data Sheet

0-1: $0.25
1-25: $0.17
25-100: $0.13
100-250: $0.11
74ACT00MTR
74ACT00MTR


IC GATE NAND QUAD 2-INPUT 14SOIC

Data Sheet

Negotiable
74ACT00PC
74ACT00PC


IC GATE NAND QUAD 2 INPUT 14-DIP

Data Sheet

Negotiable
74ACT00SC
74ACT00SC

Fairchild Semiconductor

Gates (AND / NAND / OR / NOR) Qd 2-Input NAND Gate

Data Sheet

0-1: $0.25
1-25: $0.21
25-100: $0.17
100-250: $0.14
74ACT00SCX
74ACT00SCX

Fairchild Semiconductor

Gates (AND / NAND / OR / NOR) Qd 2-Input NAND Gate

Data Sheet

0-1: $0.25
1-25: $0.21
25-100: $0.17
100-250: $0.14
74ACT00SJ
74ACT00SJ

Fairchild Semiconductor

Gates (AND / NAND / OR / NOR) Qd 2-Input NAND Gate

Data Sheet

0-1: $0.34
1-25: $0.23
25-100: $0.20
100-250: $0.18
74ACT00SJX
74ACT00SJX

Fairchild Semiconductor

Gates (AND / NAND / OR / NOR) Qd 2-Input NAND Gate

Data Sheet

0-1: $0.34
1-25: $0.23
25-100: $0.20
100-250: $0.18
