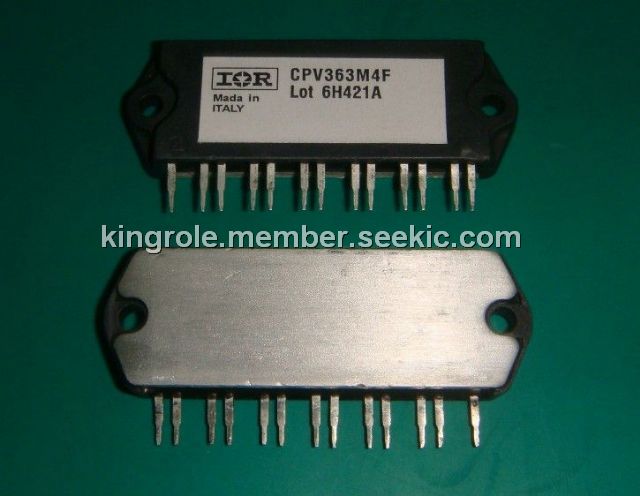

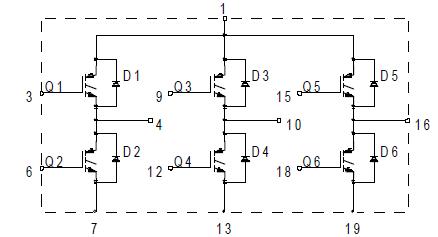

CPV363M4F

IMS Power Module, 600 V, 50A, 36 W, 1 to 10 kHz, HEXFREDTM soft ultrafast diodes

Rated 5 Rating 5 | reviews | Write a review

Price:: US $30.00~40.00 / piece [Get Latest Price]
