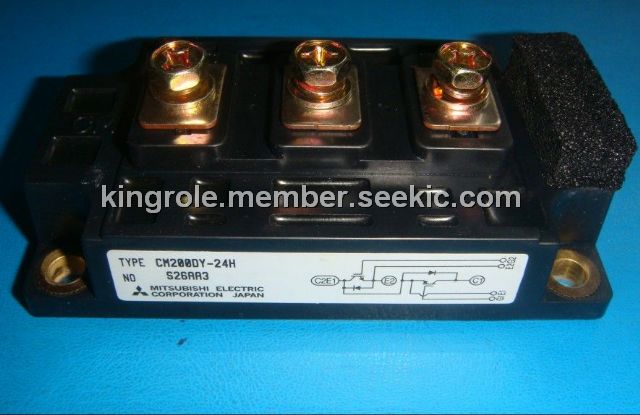

CM200DY-24H

Mitsubishi IGBT Module, 1200 Volts, 400 Amperes, Low Drive Power, High Frequency Operation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $120.00~150.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $120.00~150.00

PartNumber:: CM200DY-24H

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. winona's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-04

From Other Seller

Part Number:CM200DY-24H
US $120.00 - 150.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CM200DY-24H is a Mitsubishi IGBT Module. The device is designed for use in switching applications. The CM200DY-24H consists of two IGBTs in a half-bridge configuration with each transistor having a reverse- connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM200DY-24H include AC Motor Control, Motion/Servo Control, UPS and Welding Power Supplies.

Parametrics

CM200DY-24H absolute maximum ratings: (1)Junction Temperature, Tj: –40 to 150℃; (2)Storage Temperature, Tstg: –40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (TC = 25℃), IC: 200 Amperes; (6)Peak Collector Current, ICM: 400 Amperes; (7)Emitter Current (TC = 25℃), IE: 200 Amperes; (8)Peak Emitter Current, IEM: 400 Amperes; (9)Maximum Collector Dissipation (TC = 25℃, Tj≤150℃), Pc: 1500 Watts; (10)Mounting Torque, M6 Main Terminal: – 1.96 to 2.94 Nm; (11)Mounting Torque, M6 Mounting: – 1.96 to 2.94 Nm; (12)Weight: 400 Grams; (13)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.

Features

CM200DY-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
