Product Summary
The AT89C52-24PC is designed as one kind of low-power, high-performance CMOS 8-bit microcomputer device that is manufactured using Atmels high density nonvolatile memory technology and is compatible with the industry standard 80C51 and 80C52 instruction set and pinout. This device is also a powerful microcomputer which provides a highly flexible and cost effective solution to many embedded control applications.
Parametrics
Absolute maximum ratings:(1)Operating Temperature: -55℃ to +125℃;(2)Storage Temperature: -65℃ to +150℃;(3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V;(4)Maximum Operating Voltage: 6.6V;(5)DC Output Current: 15.0 mA.
Features
Features:(1)Compatible with MCS-51 Products; (2)8K Bytes of In-System Reprogrammable Flash Memory Endurance: 1,000 Write/Erase Cycles; (3)Fully Static Operation: 0 Hz to 24 MHz; (4)Three-Level Program Memory Lock; (5)256 x 8-Bit Internal RAM; (6)32 Programmable I/O Lines; (7)Three 16-Bit Timer/Counters; (8)Eight Interrupt Sources; (9)Programmable Serial Channel; (10)Low Power Idle and Power Down Modes.

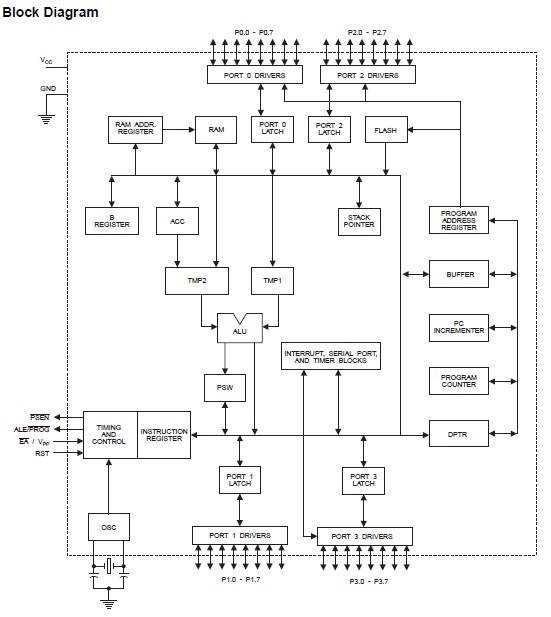

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT89C52-24PC |
Atmel |
8-bit Microcontrollers (MCU) 8K Flash 24M |
Data Sheet |
Negotiable |
|
||||||
