Product Summary

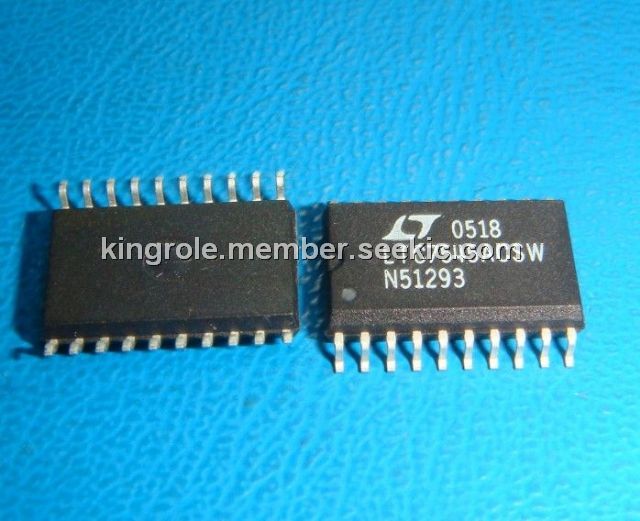

The LTC7545ACSW is a 12-bit multiplying digital-to-analog converter (DAC) with a microprocessor compatible parallel input. It is a superior pin compatible replacement for the industry standard AD7545A and AD7545. Improvements include better accuracy, better stability over temperature and supply variations and lower sensitivity to output amplifier offset. This very versatile DAC LTC7545ACSW is useful for 2-quadrant and 4-quadrant multiplying, programmable gain and filtering and single supply noninverting voltage output operation. Parts are available in 20-pin PDIP and SO packages and commercial and industrial temperature grades.
Parametrics
LTC7545ACSW absolute maximum ratings: (1) VDD to AGND: –0.5V to 17V; (2)VDD to DGND: –0.5V to 17V; (3)AGND to DGND: – 0.5V to VDD + 0.5V; (4)DGND to AGND: –0.5V to VDD + 0.5V; (5)VREF to AGND,DGND: ±25V; (6)RFB to GND,DGND: ±25V; (7)Digital Inputs to DGND: - 0.5V to VDD + 0.5V; (8)VOUT1 to AGND, DGND:–0.5V to VDD + 0.5V; (9)Maximum Junction Temperature: 150℃; (10)Operating Temperature Range; (11)Commercial (K, L Versions): 0℃ to 70℃; (12) Industrial (B, C Versions):–40℃ to 85℃; (13)Storage Temperature Range:–65℃ to 150℃; (14)Lead Temperature (Soldering, 10 sec):300℃.
Features
LTC7545ACSW features: (1)Improved Direct Replacement for AD7545A and AD7545; (2)DNL and INL Over Temperature: ±0.5LSB; (3)Gain Error: ±1LSB Maximum; (4)4-Quadrant Multiplication; (5)Single 5V or 15V Supply; (6)Low Power Consumption; (7)Low Cost.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC7545ACSW |
|
IC D/A CONV 12BIT PARALLEL20SOIC |
Data Sheet |
|
|
||||||
|
LTC7545ACSW#PBF |
|
IC D/A CONV 12BIT PARALLEL20SOIC |
Data Sheet |
|
|
||||||
|
LTC7545ACSW#TR |
|
IC DAC 12BIT PAR MULTIPLY 20SOIC |
Data Sheet |
|
|
||||||
|
LTC7545ACSW#TRPBF |
|
IC D/A CONV 12BIT PARALLEL20SOIC |
Data Sheet |
|
|
||||||
