Product Summary

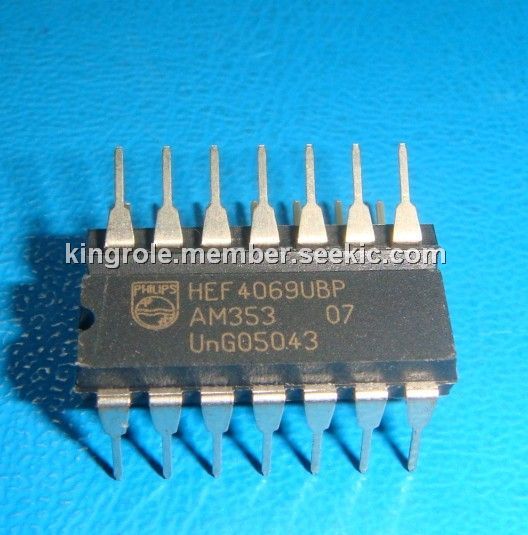

The HEF4069UBP is a general purpose hex inverter. Each inverter has a single stage. The HEF4069UBP operates over a recommended VDD power supply range of 3 V to 15 V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input. The HEF4069UBP is also suitable for use over both the industrial (-40 to +85℃) and automotive (-40 to +125℃) temperature ranges. The applications of the HEF4069UBP include Automotive and industrial and Oscillator.
Parametrics
HEF4069UBP absolute maximum ratings: 1)High Level Output Current: -1.4 mA; (2)Low Level Output Current: 0.5 mA; (3)Propagation Delay Time: 90 ns,40 ns,25 ns; (4)Supply Voltage (Max): 15 V; (5)Supply Voltage (Min): - 0.5 V; (6)Maximum Operating Temperature: + 125℃; (7)Minimum Operating Temperature: - 40℃; (8)Package/Case: DIP-14; (9)Packaging: Tube; (10)Mounting Style: Through Hole; (11)Operating Supply Voltage: 3 V to 15 V; (12)Standard Pack Qty: 25.
Features
HEF4069UBP features: (1)Fully static operation; (2)5 V, 10 V, and 15 V parametric ratings; (3)Standardized symmetrical output characteristics; (4)Operates across the automotive temperature range from -40 to +125℃; (5)Complies with JEDEC standard JESD 13-B.
Diagrams
