Product Summary

The MC68HC16Z1CFC16 is a high-speed 16-bit control unit that is upwardly code compatible with M68HC11 controllers. It incorporates a true 16-bit central processing unit (CPU16), a system integration module (SIM), an 8/10-bit analog-to-digital converter (ADC), a queued serial module (QSM), a generalpurpose timer (GPT), and a 2048-byte standby RAM (SRAM). These modules are interconnected by the intermodule bus (IMB).

Parametrics

Maximum ratings: (1)Supply Voltage, VDD: –0.3 to + 6.5 V; (2)Input Voltage, Vin: –0.3 to + 6.5 V ; (3)Instantaneous Maximum Current, Single pin limit (applies to all pins), ID: 25 mA ; (4)Operating Maximum Current, Digital input disruptive current, VSS – 0.3 < VIN < VDD + 0.3, IiD: –500 to 500 mA ; (5)Operating Temperature Range: MC68HC16Z1 “C” Suffix:–40 to 85℃; MC68HC16Z1 “V” Suffix: –40 to 105℃; MC68HC16Z1 “M” Suffix TA TL to TH: –40 to 125℃; (6)Storage Temperature Range, Tstg: –55 to 150 ℃.

Features

Features: (1)16-bit architecture; (2)Full set of 16-bit instructions; (3)Three 16-bit index registers; (4)Two 16-bit accumulators; (5)Control-oriented digital signal processing capability; (6)Addresses up to 1 Mbyte of program memory; 1 Mbyte of data memory; (7)Background debug mode; (8)Fully static operation; (9)External bus support; (10)Programmable chip-select outputs; (11)System protection logic; (12)Watchdog timer, clock monitor, and bus monitor; (13)Two 8-bit dual function input/output ports; (14)One 7-bit dual function output port; (15)Phase-locked loop (PLL) clock system.

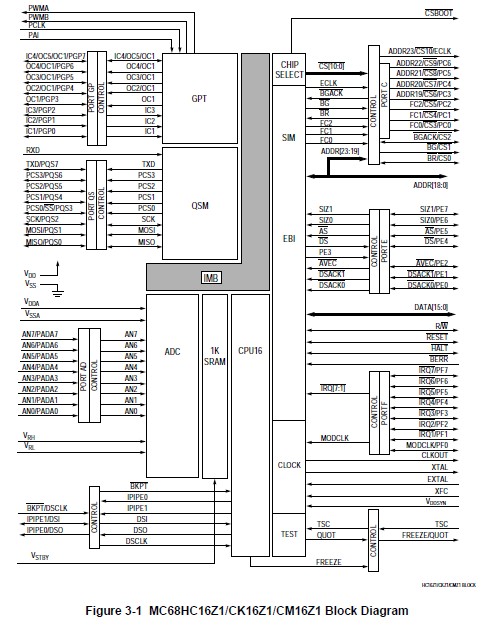

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

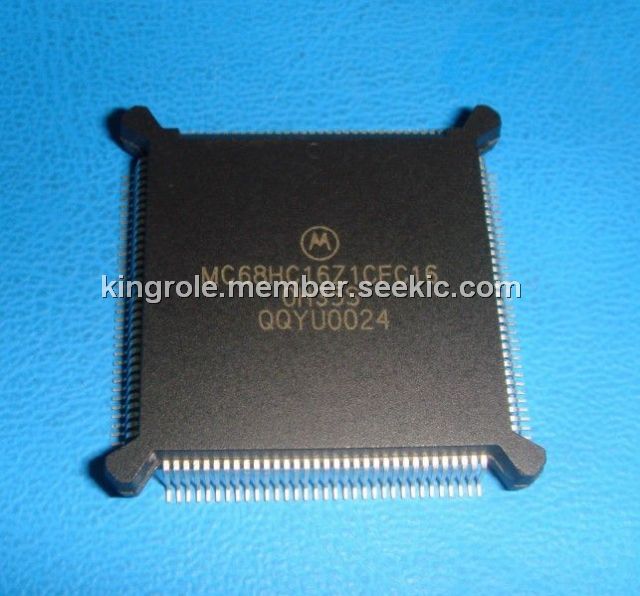

MC68HC16Z1CFC16
MC68HC16Z1CFC16

Freescale Semiconductor

IC MPU 1K RAM 16MHZ 132-PQFP

Data Sheet

Negotiable
