Product Summary

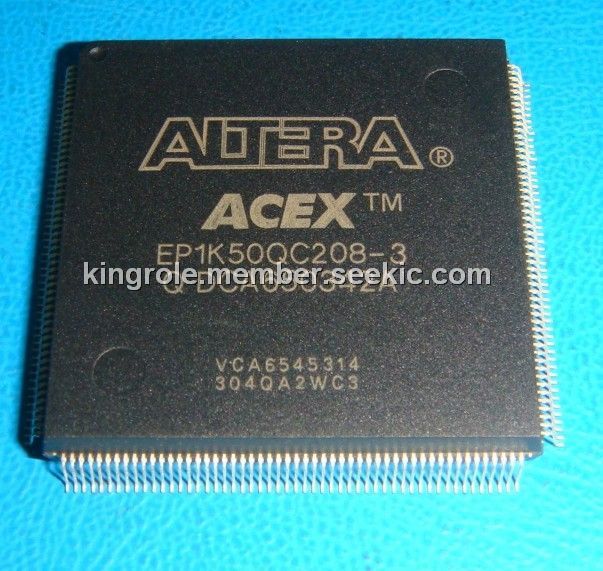

The EP1K50QC208-3 is one member of the ACEX 1K family which is designed as the programmable logic device. This device provides a die-efficient, low-cost architecture by combining look-up table (LUT) architecture with EABs, and it meets the requirements of low-cost, high-volume applications ranging from DSL modems to low-cost switches.
Parametrics
Absolute maximum ratings: 1)VCCINT, Supply voltage With respect to ground: –0.5 to 3.6 V; (2)VCCIO, Supply voltage With respect to ground: –0.5 to 4.6 V; (3)VI DC, input voltage: –2.0 to 5.75 V; (4)IOUT, DC output current, per pin: –25 to 25 mA; (5)TSTG, Storage temperature No bias: –65 to 150 ℃; (6)TAMB, Ambient temperature Under bias: –65 to 135 ℃; (7)TJ, Junction temperature at PQFP, TQFP, and BGA packages, under bias: 135 ℃ max.
Features
Features: (1)Programmable logic devices (PLDs), providing low cost system-on-a-programmable-chip (SOPC) integration in a single device;(2)Cost-efficient programmable architecture for high-volume applications: Cost-optimized process and Low cost solution for high-performance communications applications;(3)Low power consumption;(4)Bidirectional I/O performance (setup time [tSU] and clock-tooutput delay [tCO]) up to 250 MHz;(5)Operate with a 2.5-V internal supply voltage;(6)Pull-up on I/O pins before and during configuration;(7)Tri-state emulation that implements internal tri-state buses;(8)Individual tri-state output enable control for each pin.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP1K50QC208-3 |
|
IC ACEX 1K FPGA 50K 208-PQFP |
Data Sheet |
|
|
||||||
|
EP1K50QC208-3N |
|
IC ACEX 1K FPGA 50K 208-PQFP |
Data Sheet |
|
|
||||||
