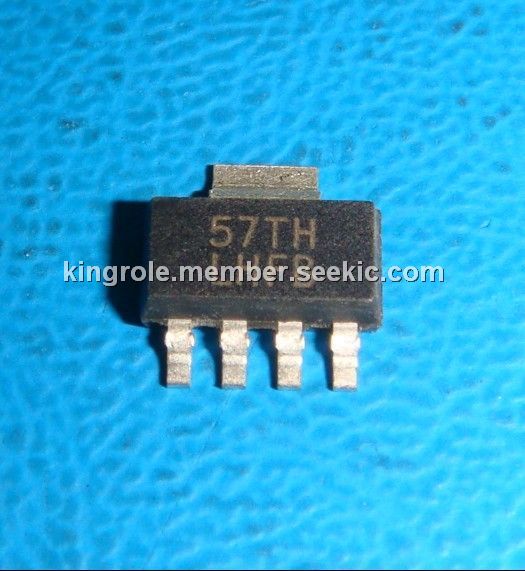

LP3874EMP-2.5

linear regulator, SOT223, -0.3V to +7.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.60~1.00

PartNumber:: LP3874EMP-2.5

Brand:: National Semiconductor - NS | Pack: SOT | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. winona's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-13

From Other Seller

Part Number:LP3874EMP-2.5
US $0.60 - 1.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

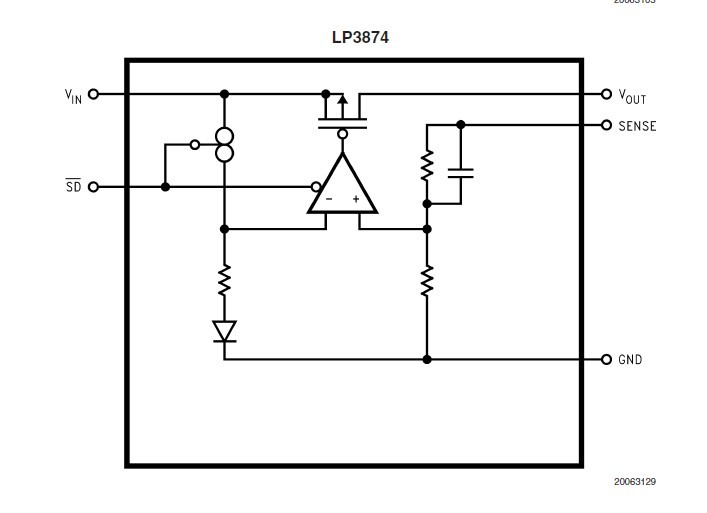

The LP3874EMP-2.5 is a 0.8A fast ultra low-dropout linear regulator operating from a +2.5V to +7.0V input supply. Wide range of preset output voltage options are available. This ultra low dropout linear regulator responds very quickly to step changes in load, which makes it suitable for low voltage microprocessor applications. The LP3874EMP-2.5 is developed on a CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the device to operate under extremely low dropout conditions. The applications of the LP3874EMP-2.5 include: (1)Microprocessor power supplies; (2)GTL, GTL+, BTL, and SSTL bus terminators; (3)Power supplies for DSPs; (4)SCSI terminator; (5)Post regulators; (6)High efficiency linear regulators; (7)Battery chargers; (8)Other battery powered applications.

Parametrics

LP3874EMP-2.5 absolute maxing ratings: (1)Storage Temperature Range: -65℃ to +150℃; (2)Lead Temperature(Soldering, 5 sec.): 260℃; (3)ESD Rating: 2kV; (4)Power Dissipation: Internally Limited; (5)Input Supply Voltage (Survival): -0.3V to +7.5V; (6)Shutdown Input Voltage(Survival): -0.3V to 7.5V; (7)Output Voltage (Survival): -0.3V to +6.0V; (8)IOUT (Survival): Short Circuit Protected; (9)Maximum Voltage for ERROR Pin: VIN; (10)Maximum Voltage for SENSE Pin: VOUT.

Features

LP3874EMP-2.5 features: (1)Ultra low dropout voltage; (2)Low ground pin current; (3)Load regulation of 0.04%; (4)10nA quiescent current in shutdown mode; (5)Guaranteed output current of 0.8A DC; (6)Available in TO-263, TO-220 and SOT-223 packages; (7)Output voltage accuracy ±1.5%; (8)Error flag indicates output status; (9)Sense option improves load regulation; (10)Minimum output capacitor requirements; (11)Overtemperature/overcurrent protection; (12)-40℃ to +125℃ junction temperature range.
