Product Summary

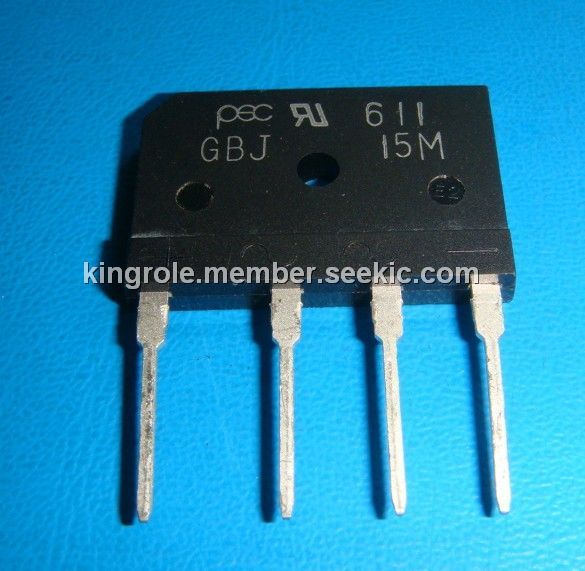

The GBJ15M is a glass passivated bridge rectifier.

Parametrics

GBJ15M absolute maximum ratings: (1)Maximum repetitive peak reverse voltage, VRRM: 100Volts; (2)maximum RMS voltage, VRMS: 700Volts; (3)maximum DC blocking voltage, VDC: 1000Volts; (4)Maximum average forward rectified current at TC=100℃, IAV: 15Amps; (5)Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method), IFSM: 200Amps; (6)Maximum instantaneous forward voltage @ IF=7.5 A, VF: 1.1Volts; (7)Maximum DC reverse current at TC=25℃, IR: 10μA; at rated DC blocking voltage @TC=125℃, IR: 500μA; (8)Typical junction capacitance per element, CJ: 60pF; (9)Typical thermal resistance, RθJC: 0.8℃/W; (10)Operating junction and storage temperature range, Tj, Tstg: -55 to 150℃.

Features

GBJ15M features: (1)Lead free product, compliance to RoHs; (2)Ideal for printed circuit board; (3)Low forward voltage drop, high current capability; (4)Plastic Material-UL Recognition Flammability Classification 94V-0.

Diagrams

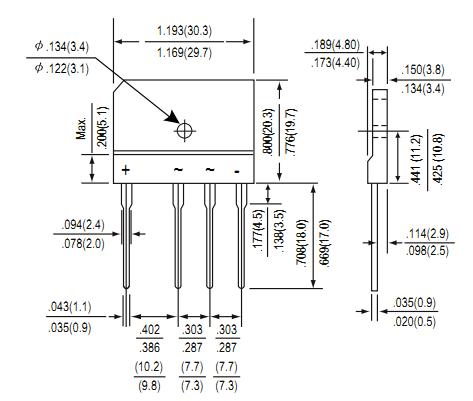

GBJ15M dimensions
