Product Summary

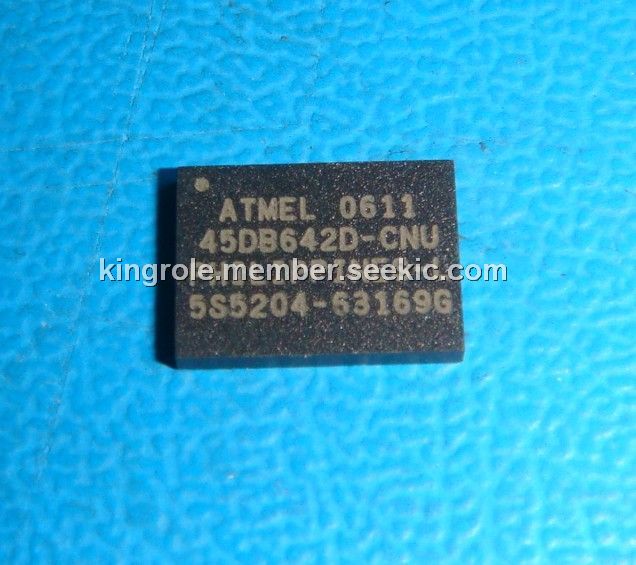

The AT45DB642D-CNU is a 2.7-volt, dual-interface sequential access Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. The AT45DB642D-CNU supports RapidS serial interface and Rapid8 8-bit interface. RapidS serial interface of the AT45DB642D-CNU is SPI compatible for frequencies up to 66 MHz. The dual-interface allows a dedicated serial interface to be connected to a DSP and a dedicated 8-bit interface to be connected to a microcontroller or vice versa.

Parametrics

AT45DB642D-CNU absolute maximum ratings: (1)Temperature under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins); (4)with Respect to Ground: -0.6V to +6.25V; (5)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V.

Features

AT45DB642D-CNU features: (1)Single 2.7V - 3.6V Supply; (2)Dual-interface Architecture; (3)User Configurable Page Size; (4)Page Program Operation; (5)Flexible Erase Options; (6)Two SRAM Data Buffers (1024/1056 Bytes); (7)Continuous Read Capability through Entire Array; (8)Low-power Dissipation; (9)Hardware and Software Data Protection Features; (10)Security: 128-byte Security Register; (11)JEDEC Standard Manufacturer and Device ID Read; (12)100,000 Program/Erase Cycles Per Page Minimum; (13)Data Retention 20 Years; (14)Green (Pb/Halide-free/RoHS Compliant) Packaging Options; (15)Temperature Range: Industrial: -40℃ to +85℃.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AT45DB642D-CNU
AT45DB642D-CNU
Atmel
Flash 64M 8 I/O Pins Ser Rapid8 1056B 2.7V
Data Sheet
0-1: $3.37
1-10: $3.13
10-25: $2.81
25-100: $2.41
