Product Summary

The ADM232LJR line driver/receiver is intended for all EIA-232-E and V.28 communications interfaces, especially in applications where ±12 V is not available. The ADM232LJR features a low power shutdown mode that reduces power dissipation to less than 5 mW, making them ideally suited for battery powered equipment. Two receivers of the ADM232LJR remain enabled during shutdown on the ADM232LJR.

Parametrics

ADM232LJR absolute maximum ratings: (1)Vcc: –0.3 V to +6 V; (2)V+: (VCC – 0.3 V) to +14 V; (3)V–: +0.3 V to –14 V; (4)Input Voltages, TIN: –0.3 V to (VCC + 0.3 V); RIN: ±30 V; (5)Output Voltages, TOUT: (V+, + 0.3 V) to (V–, – 0.3 V); ROUT: –0.3 V to (VCC + 0.3 V); (6)Short Circuit: Continuous; (7)Ceramic: 50℃/W; (8)Operating Temperature Range, Commercial (J Version): 0 to +70℃; Industrial (A Version): –40℃ to +85℃; (9)Storage Temperature Range: –65℃ to + 150℃; (10)Lead Temperature, Soldering: +300℃; (11)Vapour Phase (60 sec): +215℃; (12)Infrared (15 sec): +220℃; (13)ESD Rating: >2000 V.

Features

ADM232LJR features: (1)Single 5 V Power Supply; (2)Meets All EIA-232-E and V.28 Specifications; (3)120 kB/s Data Rate; (4)On-Board DC-DC Converters; (5)±9 V Output Swing with +5 V Supply; (6)Small 1 mF Capacitors; (7)Low Power Shutdown ≤1 mA; (8)ESD > 2 kV; (9)630 V Receiver Input Levels; (10)Latch-Up FREE; (11)Plug-In Upgrade for ADM232LJR.

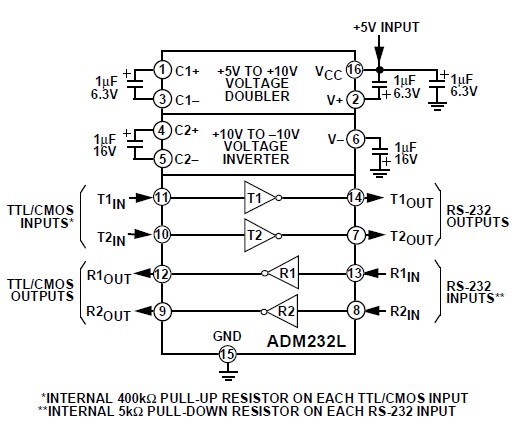

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

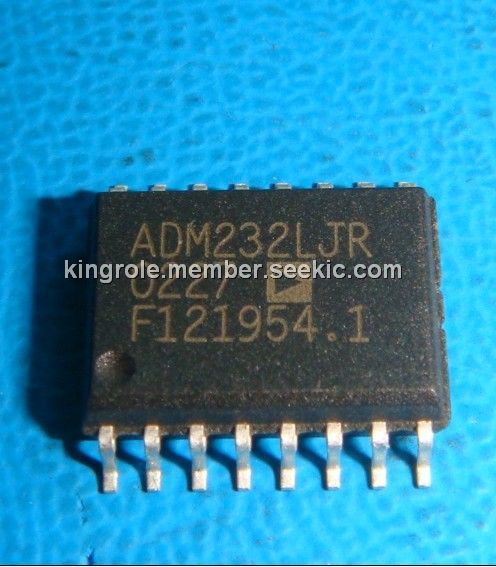

ADM232LJR
ADM232LJR

IC TX/RX DUAL RS-232 5VLP 16SOIC
Data Sheet
0-188: $1.23
ADM232LJR-REEL
ADM232LJR-REEL

IC TXRX RS-232 DUAL 5V 16SOIC
Data Sheet
0-1000: $0.84
ADM232LJRZ
ADM232LJRZ

IC TX/RX DUAL RS-232 5VLP 16SOIC
Data Sheet
0-1: $1.61
1-10: $1.45
10-100: $1.17
100-250: $1.04
250-500: $0.91
500-1000: $0.75
1000-2500: $0.70
2500-5000: $0.69
ADM232LJRZ-REEL
ADM232LJRZ-REEL

IC TXRX RS-232 2:2 5V LP 16SOIC
Data Sheet
0-1000: $0.75
