Product Summary

The A314J family of devices consists of an AlGaAs LED optically coupled to an integrated circuit with a power output stage. These A314J optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications.

Parametrics

A314J maximum ratings:(1)Storage Temperature: -55 to 125℃; (2)Operating Temperature: -40 to 100℃; (3)Peak Transient Input Current (<1 μs pulse, width, 300pps): 1.0 A; (4)Reverse Input Voltage: 3V; (5)Supply Voltage: -0.5 to 35 V; (6)Output Power Dissipation: 260mW.

Features

A314J features: (1)0.4 A Minimum Peak Output Current; (2)High Speed Response: 0.7 μs Max. Propagation, Delay over, Temp. Range; (3)Ultra High CMR: Min.10 kV/μs at VCM = 1.5 kV; (4)Bootstrappable Supply Current: Max. 3 mA; (5)Wide Operating Temp. Range: -40℃ to 100℃; (6)Wide VCC Operating Range: 10 V to 30 V over Temp. Range; (7)Available in DIP8 (Single) and SO16 (Dual) Package.

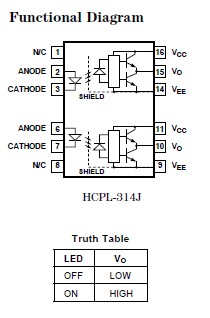

Diagrams
