Product Summary
The 1N3274 is a SILICON POWER RECTIFIER.
Parametrics
1N3274 absolute maximum ratings: (1)Average forward current: 275 Amps; (2)Maximum surge current: 5000Amps; (3)Max peak forward voltage: 1.3 Volts; (4)Max peak reverse current: 10mA; (5)Max reverse current: 75 μA.
Features
1N3274 features: (1)Glass to metal seal construction; (2)High surge current capability; (3)Soft recovery; (4)Glass passivated die; (5)VRRM 50 to 1400 Volts.

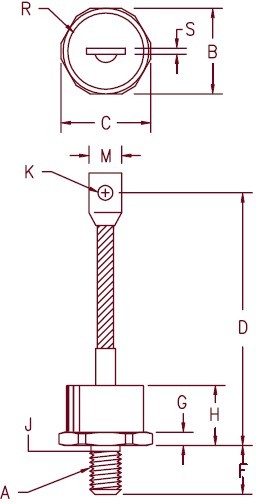

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

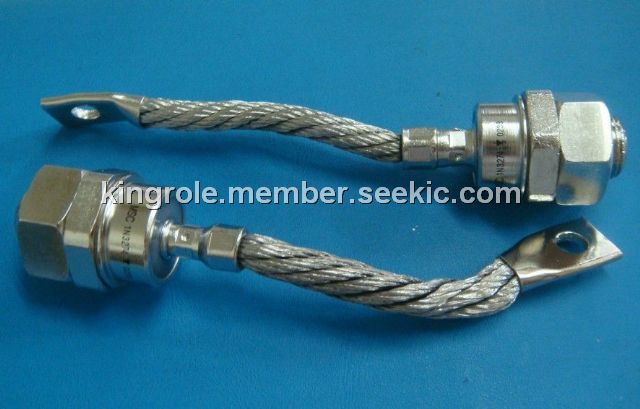

1N3274 |
RECTIFIER STUD 1200V 160A DO-9 |
Data Sheet |
|
|
||||||||
1N3274R |
RECTIFIER STUD 1200V 160A DO-9 |
Data Sheet |
|
|
