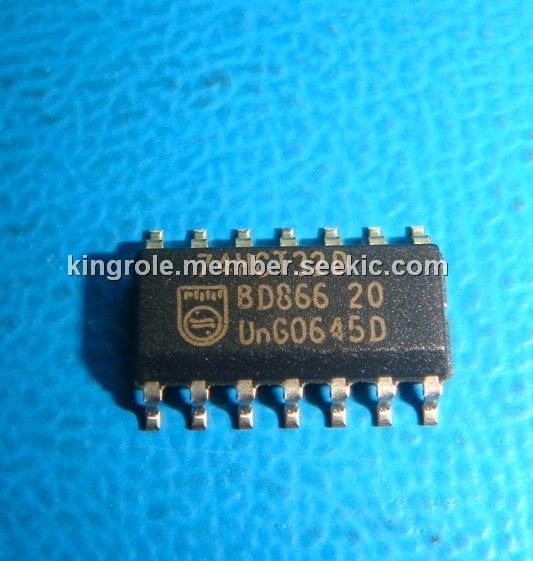

Product Summary
The 74HCT32D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL(LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HCT32D provides the 2-input OR function.
Parametrics
74HCT32D specifications: (1)VCC supply voltage: min=4.5V, typ=5.0V, max=5.5V; (2)VI input voltage: min=0, max=VCC V; (3)VO output voltage: min=0, max=VCC V; (4)Tamb operating ambient temperature: min=-40℃, typ=+25℃, max=+125℃; (5)On the conditions of VCC = 4.5V, tr, tf input rise and fall times: typ=6.0ns, max=500ns.
Features
74HCT32D features: (1)Wide supply voltage range from 2.0 to 6.0 V; (2)Symmetrical output impedance; (3)High noise immunity; (4)Low power dissipation; (5)Balanced propagation delays; (6)ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V; MM EIA/JESD22-A115-A exceeds 200 V.

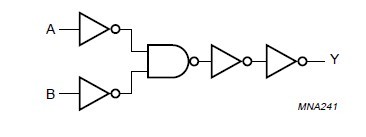

Diagrams
