Product Summary

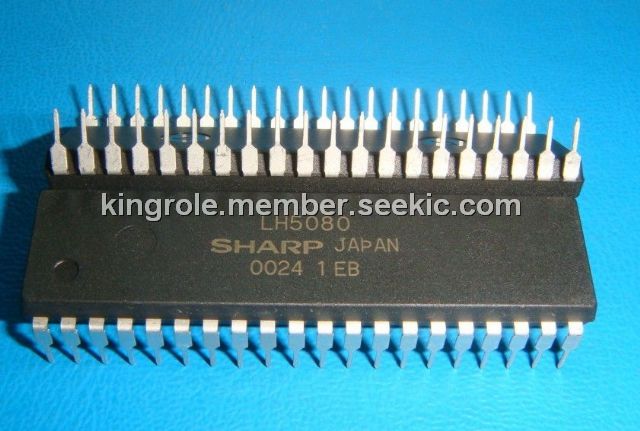

The LH5080 is a Z80 CPU fabricated with CMOS silicon-gate process technology and is compatible with the conventional Z80 NMOS CPU. Due to the CMOS static structure, the LH5080 provides low power consumption and large operating margin. The power save mode can be obtained with a software control on the models suffixed with L.

Parametrics

LH5080 absolute maximum ratings: (1)supply voltage, VCC: -0.3 to 7.0V; (2)input voltage, VIN: -0.3 to VCC+0.3V; (3)output voltage, VOUT: -0.3 to VCC+0.3V; (4)operating temperature, Topr: 0 to 70℃; (5)storage temprature, Tstg: -65 to 150℃.

Features

LH5080 features: (1)Z80 CMOS CPU; (2)compatible with the Z80 NMOS CUP; (3)158 instructions; (4)22 registers; (5)3 modes of maskable interrupt and a nonmaskable interrupt; (6)instruction fetch cycle 1.6μs/1.0μs; (7)single +5V power supply and single phase clock; (8)all inputs and outputs except clock input fully TTL compatible; (9)fully static operation DC to 2.5MHz/DC to 4MHz; (10)low power consumption; (11)power save mode; (12)40 pin DIP.

Diagrams

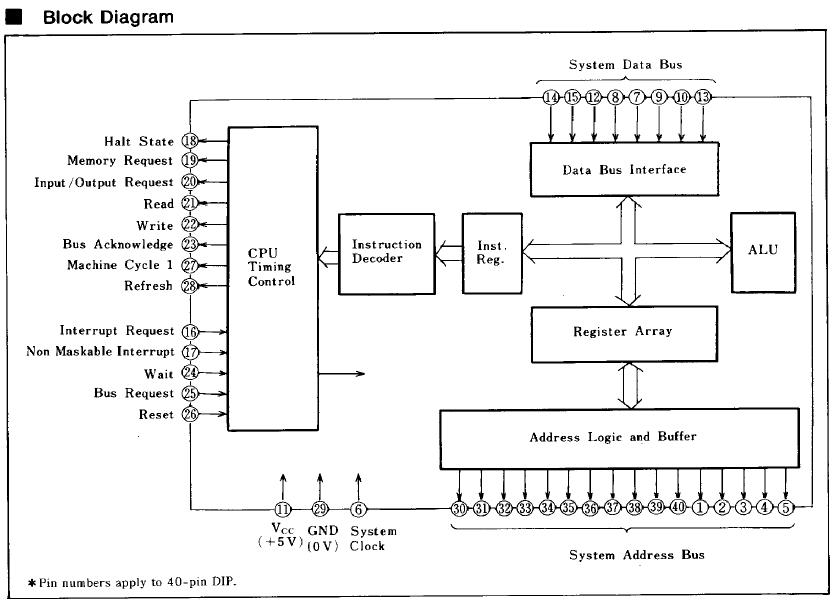

LH5080 block diagram
