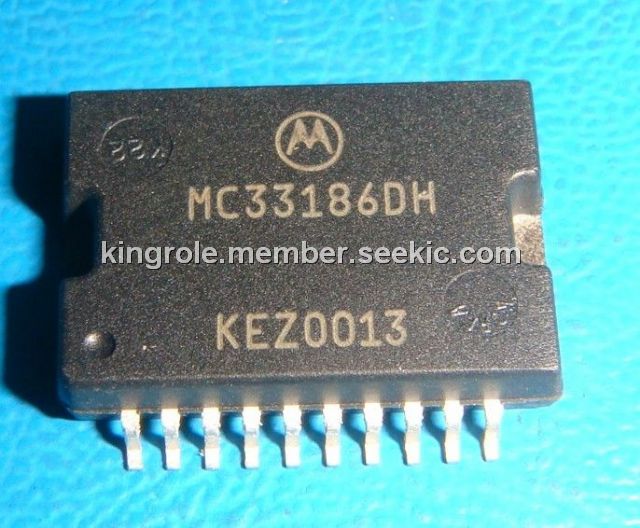

Product Summary
The MC33186DH is a monolithic H-Bridge ideal for fractional horsepower DC-motor and bi-directional thrust solenoid control. The IC incorporates internal control logic, charge pump, gate drive, and low RDS(ON) MOSFET output circuitry. The MC33186DH is able to control continuous inductive DC load currents up to 5.0 A. Output loads can be pulse width modulated (PWM-ed) at frequencies up to 10 kHz.
Parametrics
MC33186DH maximum ratings: (1)Supply Voltage: Static Destruction Proof, -1.0 to 28V; Dynamic Destruction Proof, t < 0.5 s, -2.0 to 40V; (2)Logic Inputs (IN1, IN2, DI1, DI2, CODE): - 0.5 to 7.0 V; (3)Output Status: - 0.5 to 7.0 V; (4)Junction Temperature: -40 to +150℃; (5)Storage Temperature: -55 to +125℃.
Features
MC33186DH features: (1)Overtemperature, Short-Circuit Protection, and Overvoltage Protection against Transients up to 40 V at VBAT Typical; (2)RDSon = 150 m?for each output Transistor at 25℃; (3)Continuous DC Load Current 5 A (TC < 100℃); (4)Output Current Limitation at typ 6,5 A +/- 20%; (5)Short-Circuit Shutdown for Output Currents over 8 A; (6)Logic Inputs TTL/CMOS Compatible; (7)Operating Frequency up to 20 kHz; (8)Undervoltage Disable Function; (9)Diagnostic Output, 2 Disable Input; (10)Coding Input for Alternative Functions; (11)Stable Operation with an External Capacitance.

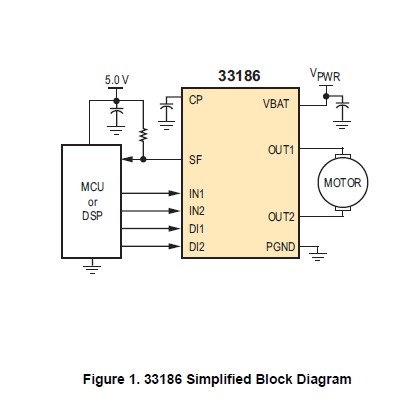

Diagrams
