Product Summary

The FS100R12KE3 is an IGBT-Module.

Parametrics

FS100R12KE3 absolute maximum ratings: (1)kollektor-emitter-sperrspannung, VCES: 1200V; (2)kollektor-dauergleichstrom, IC nom: 100A; (3)DC-collector current, IC: 140A; (4)periodischer kollektor spitzenstrom repetitive peak collector current, ICRM: 200A; (5)gesamt-verlustleistung, Ptot: 480W; (6)gate-emitter-spitzenspannung gate-emitter peak voltage, VGES: ±20V.

Features

FS100R12KE3 features: (1)periodische spitzensperrspannung repetitive peak reverse voltage, VRRM: 1200V; (2)dauergleichstrom DC forward current, IF: 100A; (3)periodischer spitzenstrom repetitive peak forward current, IFRM: 200A; (4)grenzlastintegral i2t value, I2t: 1950A2s.

Diagrams

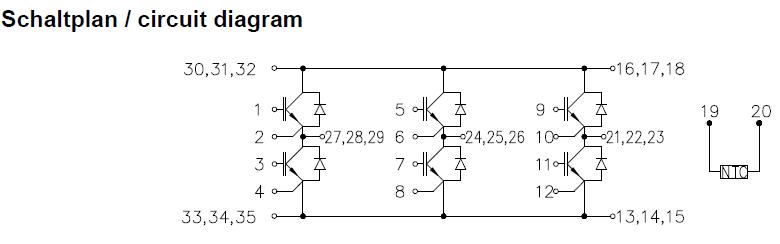

FS100R12KE3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

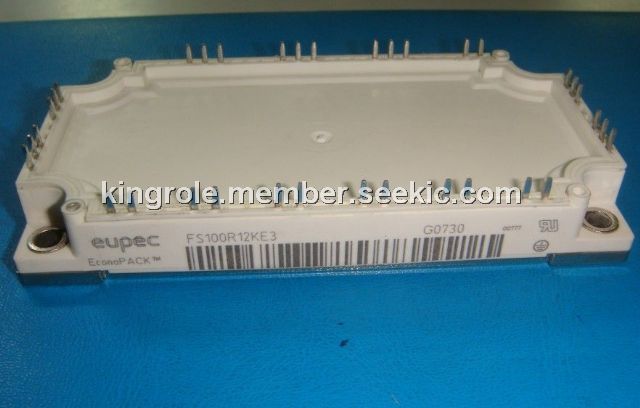

FS100R12KE3
FS100R12KE3

Infineon Technologies

IGBT Modules 1200V 100A 3-PHASE

Data Sheet

0-5: $126.79
5-10: $114.12
