Product Summary

The MC145026P is a CMOS Remote control encoder. The MC145026P is designed to be used as encoder/decoder pairs in remote control applications. The MC145026P decoder receives the serial stream and interprets 5 of the trinary digits as an address code. The MC145026P decoder trearts all nine trinary as an address which allows 19,683 codes. If binary data is encoded, 512 codes are possible.

Parametrics

MC145026P maximum ratings: (1)VDD, DC supply voltage: -0.5 to 18V; (2)VDD, DC supply voltage: -0.5 to 10V; (3)Vin, DC input voltage: -0.5 to VDD+0.5V; (4)Vout DC output voltage: -0.5 to VDD+0.5V; (5)Iin, DC input current, per Pin: ±10mA; (6)Iout, DC output current, per Pin: ±10mA; (7)PD, power dissipation per package: 500mW; (8)Tstg, storage temperature: -65 to +150℃; (9)TL, lead temperature, 1mm from case for 10 seconds: 260℃.

Features

MC145026P features: (1)Vendor Freescale Semiconductor; (2)Category Integrated Circuits (ICs) ; (3)Type Encoder, Decoder; (4)Applications Remote Control; (5)Mounting Type Through Hole ; (6)Package / Case 16-DIP (0.300", 7.62mm) ; (7)Voltage - Supply, Analog 2.5 V ~ 18 V; (8)Voltage - Supply, Digital 2.5 V ~ 18 V; (9)Packaging Tube; (10)Lead Free Status Contains Lead; (11)RoHS Status RoHS Non-Compliant.

Diagrams

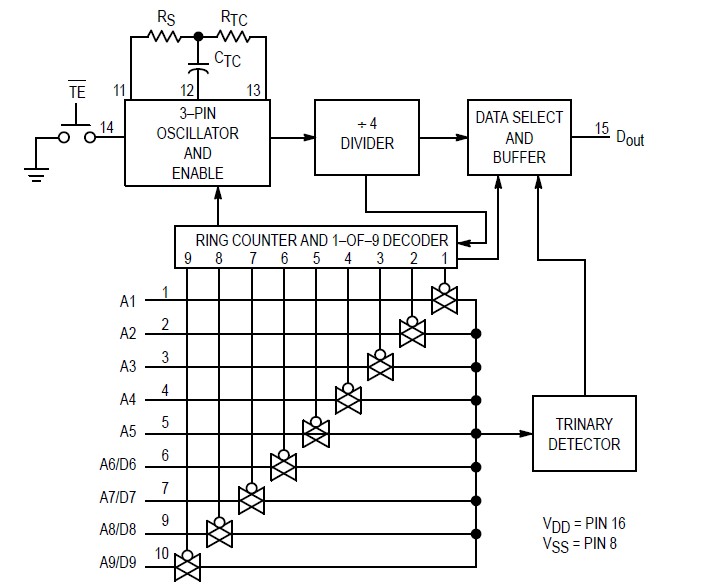

MC145026P block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

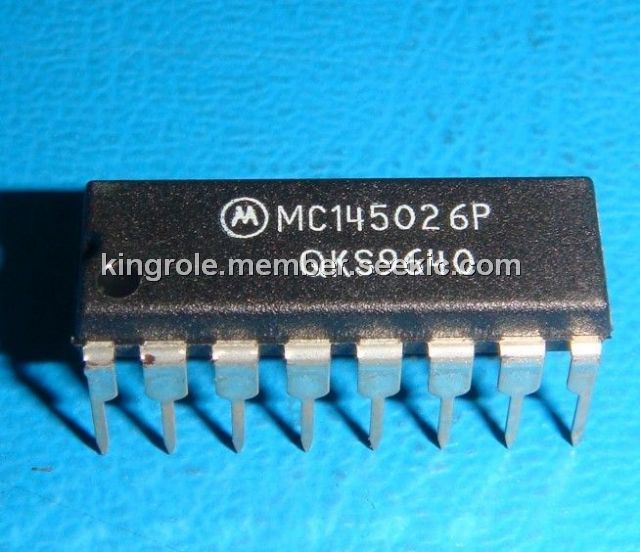

MC145026P
MC145026P


IC ENCODER 9LINE SIMPLEX 16-DIP

Data Sheet

Negotiable
