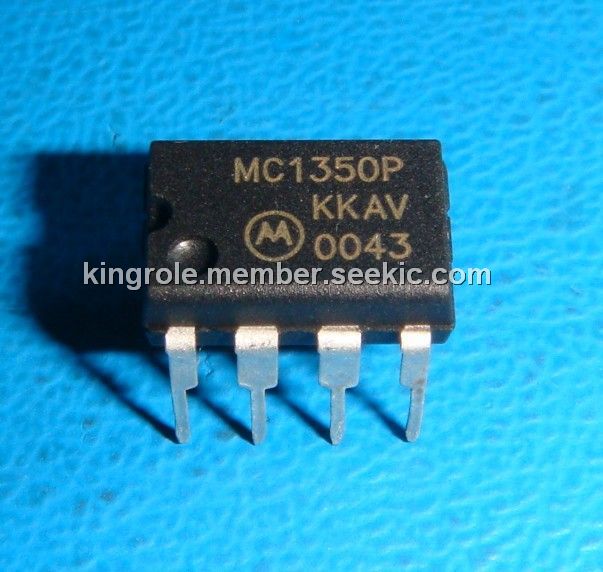

Product Summary
The MC1350P is an integrated circuit featuring wide range AGC for use as a linear IF amplifier in AM radio, shortwave, TV and instrumentation.
Parametrics
MC1350P maximum ratings: (1)Power Supply Voltage: +18 Vdc; (2)Output Supply Voltage: +18 Vdc; (3)AGC Supply Voltage: V+ Vdc; (4)Differential Input Voltage: 5.0 Vdc; (5)Power Dissipation (Package Limitation): Plastic Package, 625mW, Derate above 25℃; 5.0mW/℃; (6)Operating Temperature Range: 0 to +75℃.
Features
MC1350P features: (1)Power Gain: 50 dB Typ at 45 MHz, 50 dB Typ at 58 MHz; (2)AGC Range: 60 dB Min, DC to 45 MHz; (3)Nearly Constant Input and Output Admittance over the; (4)Entire AGC Range; (5)Y21 Constant (-3.0 dB) to 90 MHz; (6)Low Reverse Transfer Admittance: << 1.0 μmho Typical; (7)12 V Operation, Single-polarity Power Supply; (8)Operating Temperature Range: TA = 0 to +75℃.

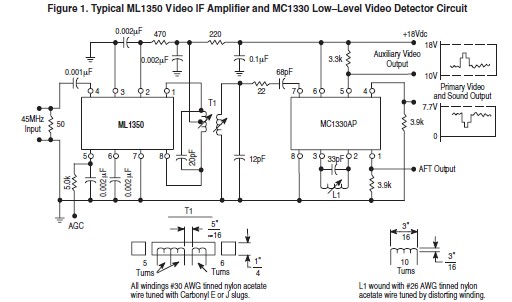

Diagrams
