Product Summary

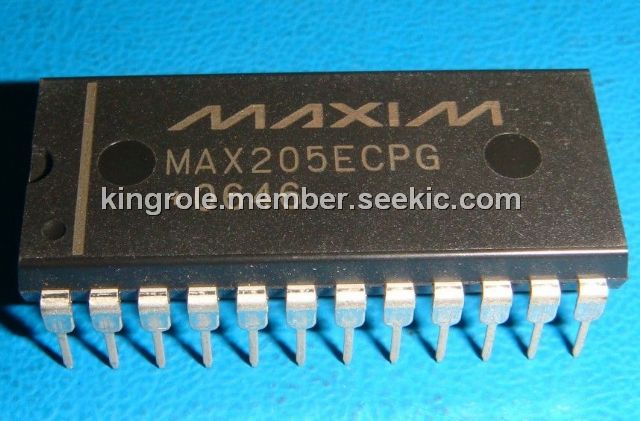

The MAX205ECPG is a line driver/receiver. The MAX205ECPG is designed for RS-232 and V.28 communications in harsh environments. Each transmitter output and receiver input of the MAX205ECPG is protected against ±15kV electrostatic discharge (ESD) shocks, without latchup. The various combinations of features are outlined in the Selector Guide. The drivers and receivers for all ten devices meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 120kbps, when loaded in accordance with the EIA/TIA-232E specification.
Parametrics
MAX205ECPG absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: -14V to +0.3V; (4)Input Voltages, T_IN: -0.3V to (V+ + 0.3V); R_IN: ±30V; (5)Output Voltages, T_OUT: (V- - 0.3V) to (V+ +0.3V); R_OUT: -0.3V to (VCC + 0.3V); (6)Short-Circuit Duration, T_OUT: Continuous; (7)Continuous Power Dissipation: 842mW; (8)Operating Temperature Ranges: 0 to +70℃; (9)Storage Temperature Range: -65 to +165℃; (10)Lead Temperature (soldering, 10s): +300℃.
Features
MAX205ECPG features: (1)For Low-Voltage Applications; (2)For Low-Power Applications; (3)For Space-Constrained Applications; (4)For Low-Voltage or Data Cable Applications.

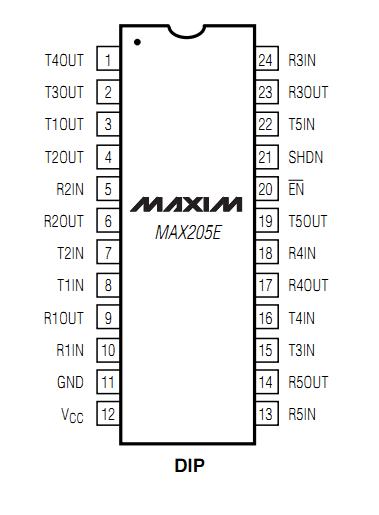

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX205ECPG |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX205ECPG+ |
Maxim Integrated Products |
RS-232 Interface IC 15kV ESD-Protected 5V RS232 Transceiver |
Data Sheet |
|
|
||||||||||||
|
MAX205ECPG+G36 |
Maxim Integrated Products |
RS-232 Interface IC 15kV ESD-Protected 5V RS232 Transceiver |
Data Sheet |
|
|
||||||||||||
