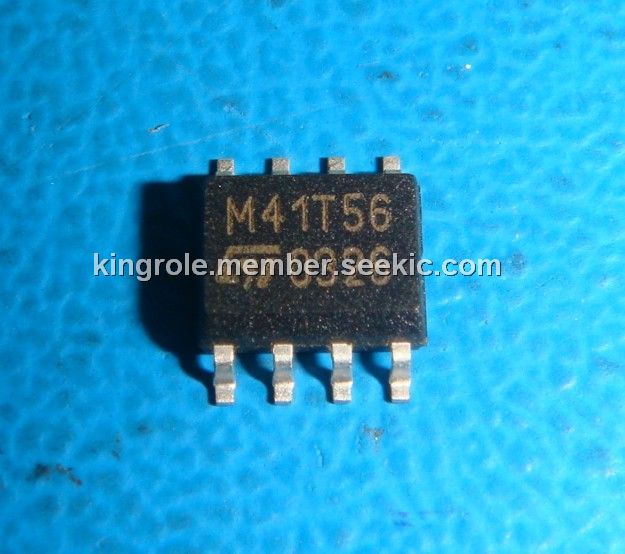

Product Summary
The M41T56M6 is a low power, Serial Real Time Clock with 56 bytes of NVRAM. A built-in 32,768Hz oscillator (external crystal controlled) and the first 8 bytes of the RAM are used for the clock/calendar function and are configured in binary coded decimal (BCD) format. Addresses and data of the M41T56M6 are transferred serially via a two-line, bi-directional bus.
Parametrics
M41T56M6 maximum ratings: (1)Lead solder temperature for 10 seconds: 260 ℃; (2)Input or output voltages: –0.3 to 7 V; (3)Supply voltage: –0.3 to 7 V; (4)Output current: 20 mA; (5)Power dissipation: 0.25 W; (6)Ambient operating temperature: –40 to 85 ℃; (7)Storage temperature(VCC off, oscillator off): SNAPHAT, –40 to 85℃, SOIC –55 to 125℃.
Features
M41T56M6 features: (1)Counters for seconds, minutes, hours, day, date, month, years, and century; (2)32 KHz crystal oscillator integrating load capacitance (12.5pF) providing exceptional oscillator stability and high crystal series; (3)resistance operation; (4)Serial interface supports I2C Bus (400kHz protocol); (5)Ultra-low battery supply current of 450nA; (6)5V ±10% supply voltage; (7)Timekeeping down to 2.5V; (8)Automatic power-fail detect and switch circuitry; (9)56 bytes of general purpose RAM; (10)Software clock calibration to compensate crystal deviation due to temperature.

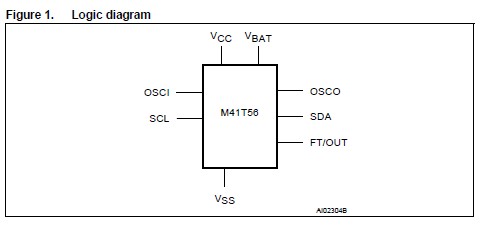

Diagrams
