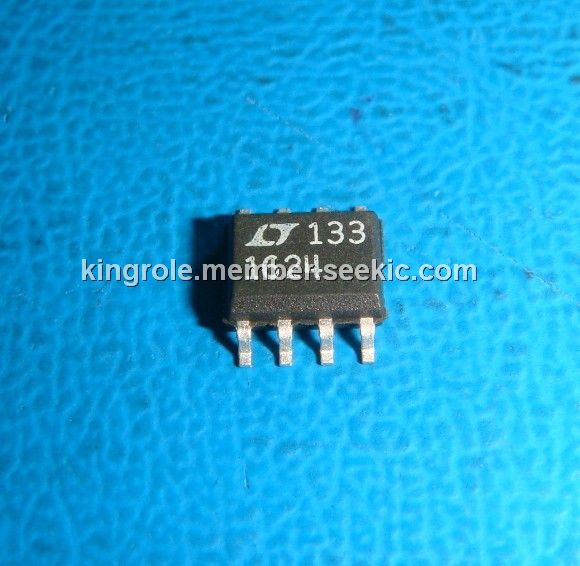

LT1624CS8

Sense Amplifier, SOP, -0.3V to 7V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.00

PartNumber:: LT1624CS8

Brand:: Linear Technology - Linear | Pack: SOP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. winona's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-13

From Other Seller

Part Number:LT1624CS8
US $0.50 - 1.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LT1624CS8 simplifies the design of high performance, controlled current battery charging circuits when used in conjunction with a current mode PWM controller IC. The LT1624CS8 regulates average output current independent of input and output voltage variations. Output current can be easily adjusted via a programming voltage applied to the its PROG pin. The applications of it include: (1)High Current Battery Chargers; (2)High Output Voltage DC/DC Converters; (3)Constant Current Sources; (4)Overcurrent Fault Protectors.

Parametrics

LT1624CS8 absolute maxing ratings: (1)Power Supply Voltage: VCC: -0.3V to 7V; (2)Programming Voltage: PROG, PROG2: -0.3V to VCC + 0.3V (7V Max); IOUT, SENSE, AVG, AVG2, MODE Voltage: -0.3V to VCC + 0.3V (7V Max); (3)Sense Amplifier Input Common Mode: –0.3V to 36V; (4)Operating Ambient Temperature Range, Commercial: 0℃ to 70℃; Industrial: -40℃ to 85℃; (5)Storage Temperature Range: –65℃ to 150v; (6)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1624CS8 features: (1)Accurate Output Current Programming; (2)Usable in Charging Applications Up to 32V Output; (3)Programmable Load Current Monitor for End-of-Charging-Cycle Notification (16-Pin Version); (4)Dual Function IC (LT1621) Allows Convenient Integration of Load and Input Current Sensing; (5)Level-Shifted Current Sense Output for Current Mode PWM Controllers; (6)Can be Used for NiCd, NiMH, Lead-Acid and Lithium-Ion Battery Charging; (7)Greater than 96% Efficiency Possible in Charger.
