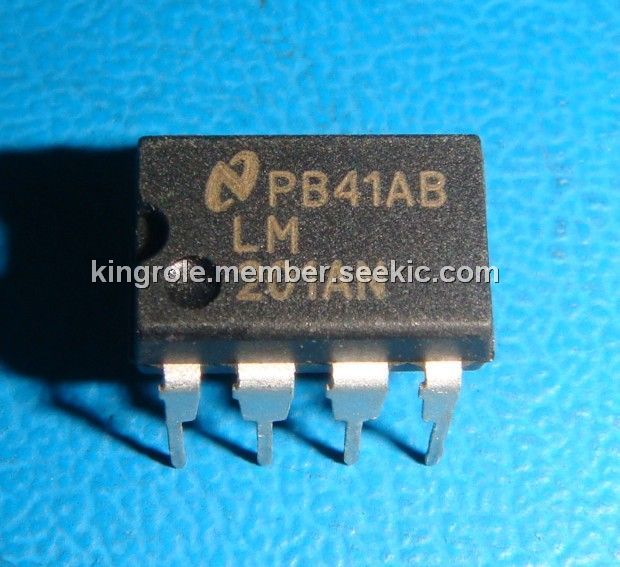

Product Summary

The LM201AN is a general purpose operational amplifier which features improved performance over industry standards like the LM709. Advanced processing techniques make possible an order of magnitude reduction in input currents, and a redesign of the biasing circuitry reduces the temperature drift of input current. The LM201AN offers many features which make its application
nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, and freedom from oscillations and compensation with a single 30pF capacitor.

Parametrics

LM201AN absolute maxing ratings: (1)Supply Voltage: ±22V ; (2)Differential Input Voltage: ±30V ; (3)Input Voltage: ±15V; (4)Output Short Circuit Duration: Continuous; (5)Operating Ambient Temp. Range: -25℃ to +85℃; (6)TJ Max H-Package: 150℃; N-Package: 150℃; J-Package 150℃; (7)Power Dissipation at TA=25℃, H-Package (Still Air): 500mW; (400 LF/Min Air Flow): 1200mW; N-Package: 900mW; J-Package: 1000 mW; (8)Thermal Resistance (Typical) θjA, H-Package (Still Air): 165℃/W; (400 LF/Min Air Flow): 67℃/W; N Package 135℃/W; J-Package: 110℃/W; (Typical)θjC, H-Package: 25℃/W.

Features

LM201AN features: (1)Offset voltage 3 mV maximum over temperature; (2)Input current 100 nA maximum over temperature; (3)Offset current 20 nA maximum over temperature; (4)Guaranteed drift characteristics; (5)Offsets guaranteed over entire common mode and supply voltage ranges; (6)Slew rate of 10V/μs as a summing amplifier.

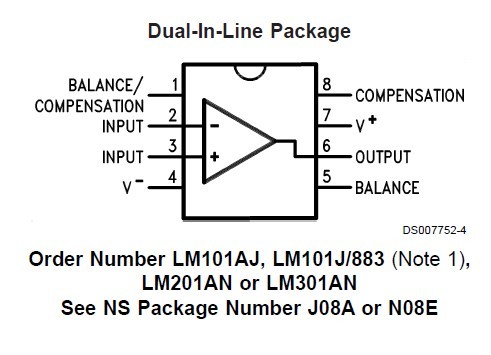

Diagrams
