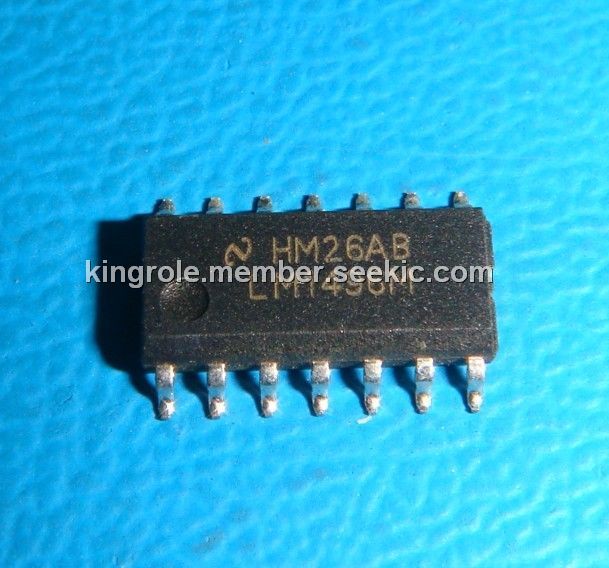

Product Summary
The LM1496M is a doubled balanced modulator-demodulator which produces an output voltage proportional to the product of an input (signal) voltage and a switching (carrier) signal. Typical applications include suppressed carrier modulation, amplitude modulation, synchronous detection, FM or PM detection, broadband frequency doubling and chopping. The LM1496M is specified for operation over the 0℃ to +70℃.
Parametrics
LM1496M absolute maxing ratings: (1)Internal Power Dissipation: 500mW; (2)Applied Voltage: 30V; (3)Differential Input Signal (V7 b V8): ±5.0V; (4)Differential Input Signal (V4 b V1): ±(5+I5R0)V; (5)Input Signal (V2 b V1, V3bV4): 5.0V; (6)Bias Current (I5): 12mA; (7)Operating Temperature Range: 0℃ to +70℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Soldering Information: Dual-In-Line Package Soldering (10 seconds): 260℃; Small Outline Package Vapor Phase (60 seconds): 215℃; Infrared (15 seconds) 220℃.
Features
LM1496M features: (1)Excellent carrier suppression: 65 dB typical at 0.5 MHz; 50 dB typical at 10 MHz; (2)Adjustable gain and signal handling; (3)Fully balanced inputs and outputs; (4)Low offset and drift; (5)Wide frequency response up to 100 MHz.
Diagrams
 |
