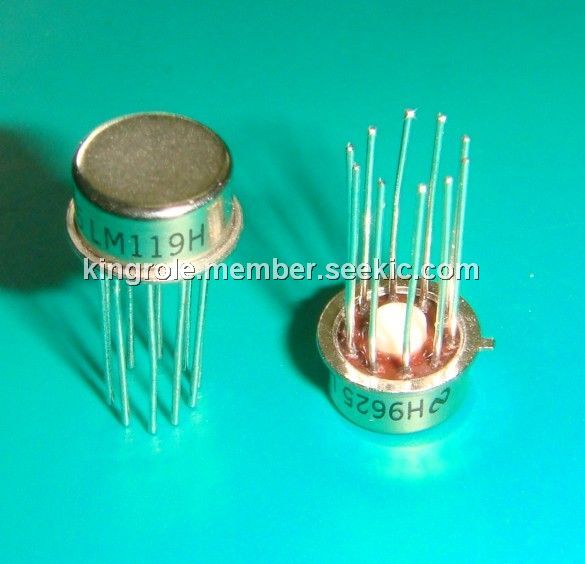

Product Summary

The LM119H is a precision high speed dual comparator. The device is fabricated on a single monolithic chip. The LM119H is designed to operate over a wide range of supply voltages down to a single 5V logic supply and ground. Furthermore, it has a higher gain and lower input current than other devices. The uncommitted collector of the output stage makes the LM119H compatible with RTL, DTL and TTL as well as capable of driving lamps and relays at currents up to 25mA.

Parametrics

LM119H absolute maximum ratings: (1)Total Supply Voltage: 36V; (2)Output to Negative Supply Voltage: 36V; (3)Ground to Negative Supply Voltage: 25V; (4)Ground to Positive Supply Voltage: 18V; (5)Differential Input Voltage: +5V; (6)Input Voltage: +15V; (7)Power Dissipation: 500mW; (8)Output Short Circuit Duration: 10 seconds; (9)Maximum Junction Temperature: 150℃; (10)Storage Temperature Range: -65 C to 150℃; (11)Lead Temperature (Soldering, 10 seconds): 260℃.

Features

LM119H features: (1)Two independent comparators; (2)Operates from a single 5V supply; (3)Typically 80nS response time at +15V; (4)Minimum fan-out of 2 each side; (5)Maximum input current of 1uA over temperature; (6)Inputs and outputs can be isolated from system ground; (7)High common mode slew rate.

Diagrams

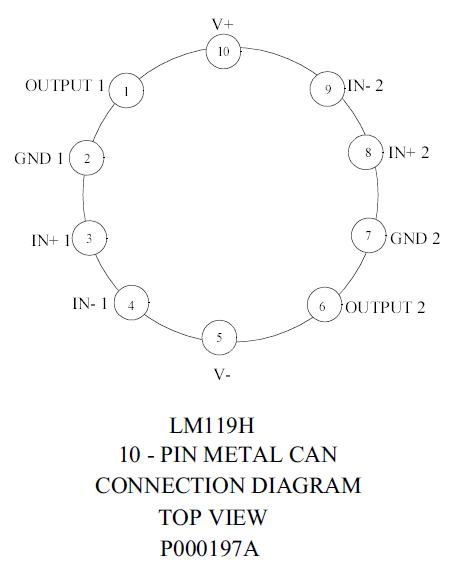

LM119H connection diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM119H
LM119H

National Semiconductor (TI)

Comparator ICs

Data Sheet

0-500: $3.69
500-1000: $3.61
LM119H/NOPB
LM119H/NOPB

National Semiconductor (TI)

Comparator ICs

Data Sheet

0-1: $6.69
1-25: $5.48
25-100: $4.95
100-250: $4.55
LM119HRLQMLV
LM119HRLQMLV

National Semiconductor (TI)

Comparator ICs

Data Sheet

0-20: $247.95
LM119HRQMLV
LM119HRQMLV

National Semiconductor (TI)

Comparator ICs

Data Sheet

0-20: $239.25
LM119H-SMD
LM119H-SMD

National Semiconductor (TI)

Comparator ICs

Data Sheet

0-40: $16.73
40-100: $15.34
100-260: $13.48
260-500: $12.79
