Product Summary

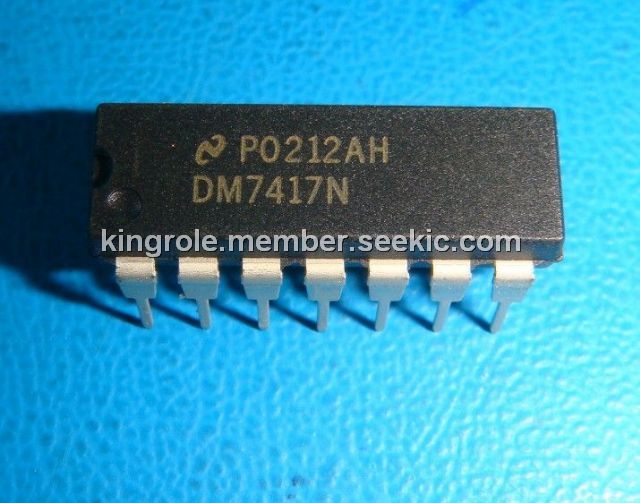

The DM7417N is a Hex Buffer with High Voltage Open-Collector Outputs. The device contains six independent gates each of which performs a buffer function. The open-collector outputs require external pull-up resistors for proper logical operation.
Parametrics
DM7417N absolute maximum ratings: (1)Supply Voltage: 7V; (2)Input Voltage: 5.5V; (3)Output Voltage: 15V; (4)Operating Free Air Temperature Range: 0 to 70℃; (5)Storage Temperature Range: -65 to 150℃.
Features
DM7417N features: (1)Case / Package: DIP-14; (2)Lead-Free Status: Contains Lead; (3)Packaging: Bulk; (4)RoHS: Non-Compliant.

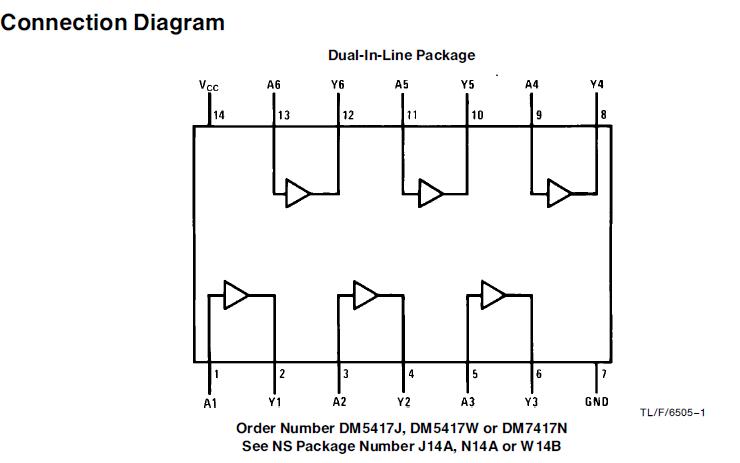

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DM7417N |
Fairchild Semiconductor |
Buffers & Line Drivers Hex Buffer |
Data Sheet |
Negotiable |
|
||||
