Product Summary

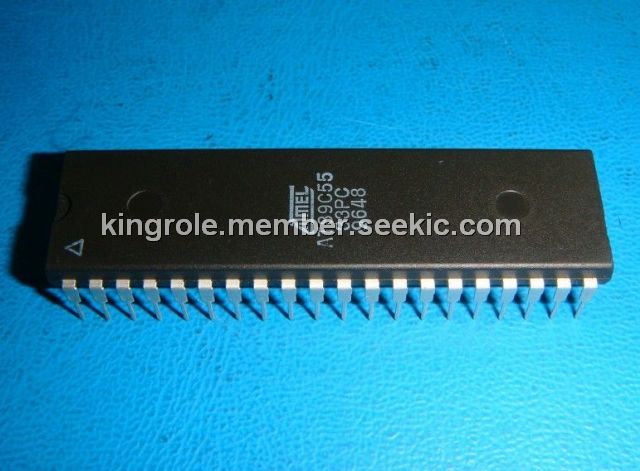

The AT89C55-33PC is a low-power, high-performance CMOS 8-bit microcomputer with 20K bytes of Flash programmable and erasable read only memory. The AT89C55-33PC is manufactured using high density nonvolatile memory technology and is compatible with the industry standard 80C51 instruction set and pinout. The on-chip Flash allows the program memory to be reprogrammed in-system or by a conventional nonvolatile memory programmer. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the AT89C55-33PC is a powerful microcomputer which provides a highly flexible and cost effective solution to many embedded control applications.
Parametrics
AT89C55-33PC absolute maximum ratings: (1)Operating Temperature: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.6V; (5)DC Output Current: 15.0 mA.
Features
AT89C55-33PC features: (1)Compatible with MCS-51?Products; (2)20K Bytes of In-System Reprogrammable Flash Memory: Endurance: 1,000 Write/Erase Cycles; (3)Fully Static Operation: 0 Hz to 33 MHz; (4)Three-Level Program Memory Lock; (5)256 x 8-bit Internal RAM; (6)32 Programmable I/O Lines; (7)Three 16-bit Timer/Counters; (8)Eight Interrupt Sources; (9)Low Power Idle and Power Down Modes.
Diagrams
 |
