Product Summary
The AT29C010A-70JC is a 5-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 1 megabit of memory is organized as 131,072 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT29C010A-70JC offers access times to 70 ns with power dissipation of just 275 mW over the commercial temperature range. When the AT29C010A-70JC is deselected, the CMOS standby current is less than 100 mA. The device endurance is such that any sector can typically be written to in excess of 10,000 times.
Parametrics
AT29C010A-70JC absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.
Features
AT29C010A-70JC features: (1)Fast Read Access Time - 70 ns; (2)5-Volt-Only Reprogramming; (3)Sector Program Operation; (4)Two 8 KB Boot Blocks with Lockout; (5)Internal Program Control and Timer; (6)Hardware and Software Data Protection; (7)Fast Sector Program Cycle Time - 10 ms; (8)DATA Polling for End of Program Detection; (9)Low Power Dissipation; (10)Typical Endurance > 10,000 Cycles; (11)Single 5V ±10% Supply; (12)CMOS and TTL Compatible Inputs and Outputs; (13)Commercial and Industrial Temperature Ranges.

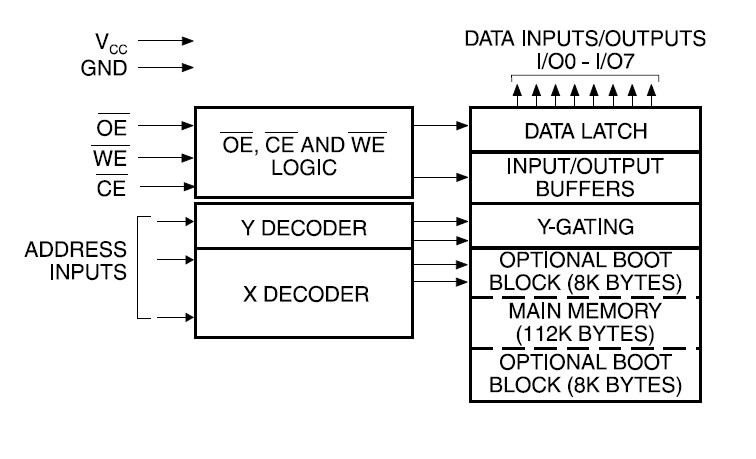

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

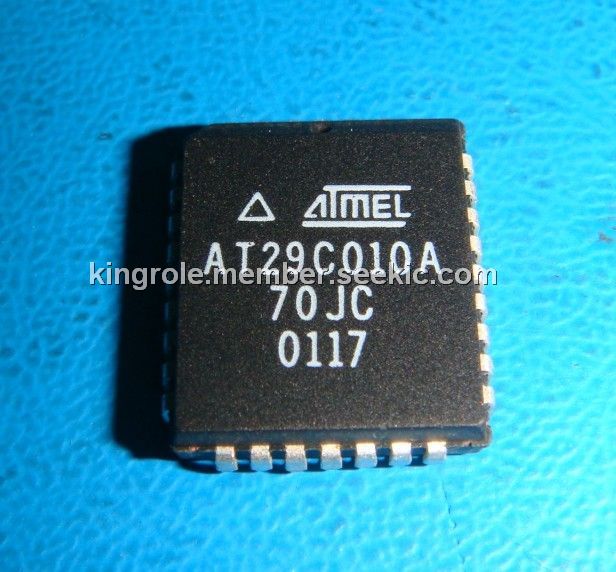

AT29C010A-70JC |
Atmel |
Flash 1M(128Kx8) 5V ONLY 70NS COM TEMP |
Data Sheet |
Negotiable |
|
|||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
AT29BV010A |
Other |
Data Sheet |
Negotiable |
|
||||||
AT29BV010A-12JC |
Atmel |
Flash 1M (128K X 8) 2.7V- 120NS COM TEMP |
Data Sheet |
Negotiable |
|
|||||
AT29BV010A-12JI |
Atmel |
Flash 1M (128K X 8) 2.7V- 120NS IND TEMP |
Data Sheet |
Negotiable |
|
|||||
AT29BV010A-12JU |
Atmel |
Flash 1M(128Kx8) 2.7V - 120NS IND TEMP |
Data Sheet |
Negotiable |
|
|||||
AT29BV010A-12TC |
Atmel |
Flash 1M (128K X 8) 2.7V- 120NS COM TEMP |
Data Sheet |
Negotiable |
|
|||||
AT29BV010A-12TI |
Atmel |
Flash 1M (128K X 8) 2.7V- 120NS IND TEMP |
Data Sheet |
Negotiable |
|
