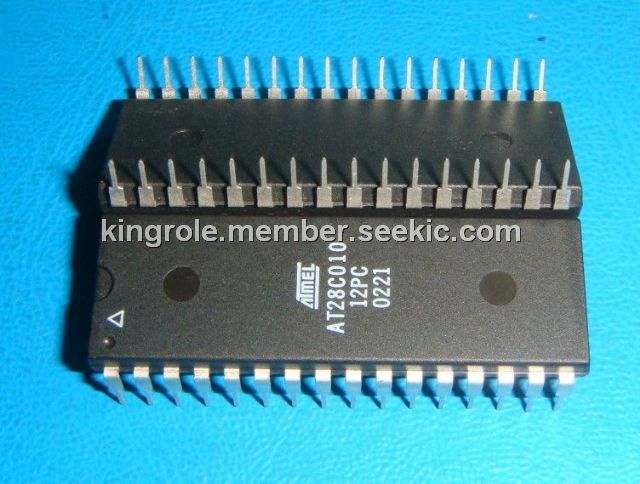

AT28C010-12PC

DIP, Programmable Read Only Memory, - 120 ns

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~10.00

PartNumber:: AT28C010-12PC

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. winona's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-08

From Other Seller

Part Number:AT28C010-12PC
US $8.00 - 10.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
AT24C02BN-SH-T

US $0.08 - 0.15 / Piece
(0) Remove
Quantity:

piece

Product Summary

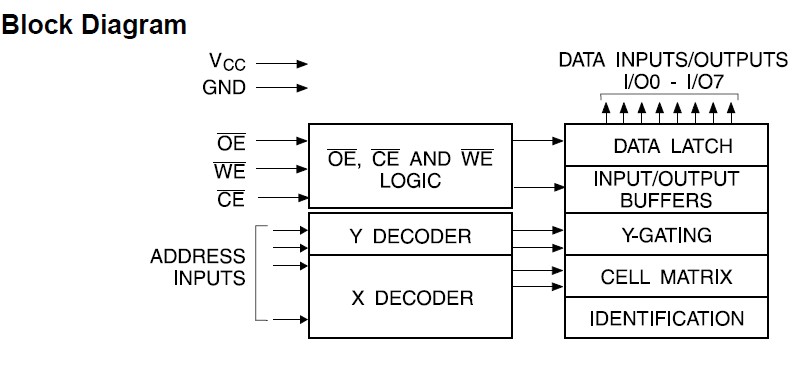

The AT28C010-12PC is a high-performance Electrically Erasable and Programmable Read Only Memory. Its one megabit of memory is organized as 131,072 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology. The AT28C010-12PC is accessed like a Static RAM for the read or write cycle without the need for external components. The device contains a 128-byte page register to allow writing of up to 128-bytes simultaneously. During a write cycle, the address and 1 to 128-bytes of data are internally latched, freeing the address and data bus for other operations. Following the initiation of a write cycle, the AT28C010-12PC will automatically write the latched data using an internal control timer.

Parametrics

AT28C010-12PC absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground:. -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE and A9 with Respect to Ground: -0.6V to +13.5V.

Features

AT28C010-12PC features:(1)Fast Read Access Time - 120 ns; (2)Automatic Page Write Operation; (3)Fast Write Cycle Time; (4)Low Power Dissipation; (5)Hardware and Software Data Protection; (6)DATA Polling for End of Write Detection; (7)High Reliability CMOS Technology; (8)Single 5V ± 10% Supply; (9)CMOS and TTL Compatible Inputs and Outputs; (10)JEDEC Approved Byte-Wide Pinout.
