Product Summary

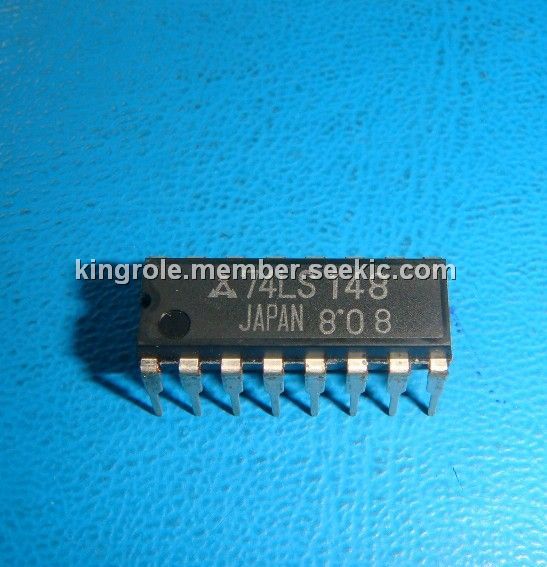

The 74LS148 is an 8-line-to-3-line priority encoder, which could provide priority decoding of the inputs to ensure that only the highest order data line is encoded. The 74LS148 encodes eight data lines to three-line (4-2-1) binary (octal).
Parametrics
74LS148 maximum ratings: (1)Supply Voltage: 4.75(min), 5.0(typ), 5.25(max) V; (2)Operating Ambient Temperature Range: 0 to 70 ℃, 25℃(typ); (3)Output Current: – High: –0.4 mA(typ); (4)Output Current – Low: 8.0 mA(typ).
Features
74LS148 features: (1)Encode 8 Data Lines to 3-Line Binary (Octal); (2)Applications Include: n-Bit Encoding,Code Converters and Generators.
Diagrams
 |
