Product Summary

The 74HCT245D is a high-speed Si-gate CMOS device and is pin compatible with Low-Power Schottky TTL (LSTTL). 74HCT245D features an output enable input for easy cascading and a send/receive input (DIR) for direction control.

Parametrics

74HCT245D maximum ratings: ((1)propagation delay:(CL = 15 pF; VCC = 5 V) 7 ns; (2)input capacitance: 3.5pF; (3)input/output capacitance: 10pF; (4)power dissipation capacitance per transceiver: 30pF; (5)propagation delay( CL = 15 pF; VCC = 5 V): 10ns.

Features

74HCT245D features: (1)Octal bidirectional bus interface; (2)Non-inverting 3-state outputs; (3)Multiple package options; (4)Complies with JEDEC standard no. 7A; (5)ESD protection: HBM EIA/JESD22-A114-B exceeds 2000 V, MM EIA/JESD22-A115-A exceeds 200 V; (6)Specified from -40℃ to +85 ℃ and from -40 ℃ to +125℃.

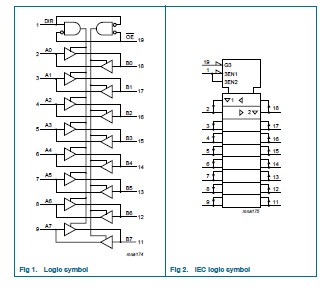

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
74HCT245D,652
74HCT245D,652
NXP Semiconductors
Bus Transceivers OCTAL BUS TXRX 3ST
Data Sheet
0-1: $0.27
1-25: $0.23
25-100: $0.18
100-250: $0.15
74HCT245D,653
74HCT245D,653
NXP Semiconductors
Bus Transceivers OCTAL TRANSCEIVER 3-STATE
Data Sheet
0-1: $0.27
1-25: $0.23
25-100: $0.18
100-250: $0.15
74HCT245DB,118
74HCT245DB,118
NXP Semiconductors
Bus Transceivers OCTAL TRANSCVR 3-S
Data Sheet
0-1: $0.10
1-25: $0.09
25-100: $0.09
100-250: $0.08
74HCT245DB,112
74HCT245DB,112
NXP Semiconductors
Bus Transceivers OCTAL TRANSCVR 3-S
Data Sheet
0-1: $0.22
1-25: $0.20
25-100: $0.18
100-250: $0.18
74HCT245DB-T
74HCT245DB-T
NXP Semiconductors
Bus Transceivers OCTAL TRANSCVR 3-S
Data Sheet
Negotiable
74HCT245DTR2G
74HCT245DTR2G
ON Semiconductor
Bus Transceivers OCTAL BUS TRANSCEIVER
Data Sheet
Negotiable
